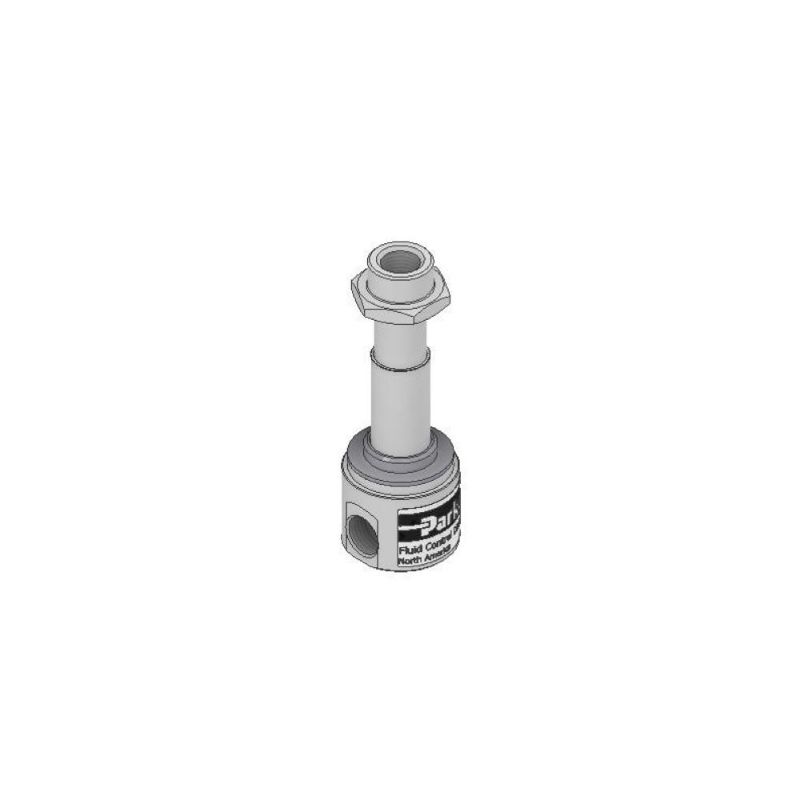

Parker 30CF02GV4 - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CF02GV4

$87.45

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Function	Normally Open (NO)
Valve Type	3-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Exhaust Orifice Size	1/16 inch
Exhaust Flow Coefficient	0.09 Cv	Media	General Purpose
Seal Material	FKM	Port Size	1/8 inch
Body Material	Stainless Steel 303	Coil Type	Requires G4 Series Coil Kit
Input Voltage	Pressure Vessel Only (AC or DC Voltage)	Maximum Ambient Temperature	135 °F (AC)
Orifice Size	1/16 inch	Maximum Fluid Temperature	240 °F
Maximum Pressure Differential	150 psi (AC or DC)	Main Flow Coefficient	0.1 Cv
Power Consumption	10 W (AC)	Configuration	Pressure In Sleeve - Out Body
Installation	IOM 304	Preventive Maintenance Kit	4R003
