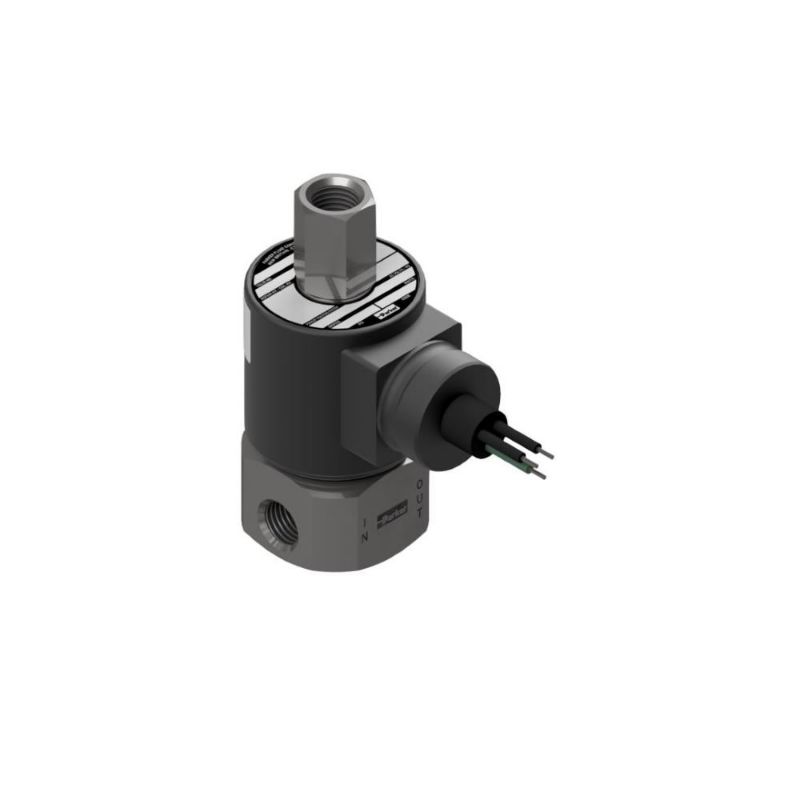

Parker 30CC04GN7B7A - G7 SERIES Solenoid Valves

Name: Parker 30CC04GN7B7A - G7 SERIES Solenoid Valves
SKU: 30CC04GN7B7A
Price: 176.74 USD
Availability: InStock

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:

26 In Stock

Jacksonville, FL

Partner Available:

2 Limited Stock

Brand Parker

Part No. 30CC04GN7B7A

$176.74

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Input Voltage	12.0 VDC	Seal Material	NBR
Actuation Type	Direct Acting	Minimum Pressure Differential	0 psi
Configuration	Normally Closed (NC)	Body Material	Stainless Steel 303
Orifice Size	1/16 inch	Specifications Met	CURus General Purpose
Port Size	NPT 1/4 inch	Power Consumption	10 W
Main Flow Coefficient	0.1 Cv	Maximum Fluid Temperature	185 °F
Maximum Ambient Temperature	150 °F	Coil Specifications Met	IP69
Function	3-Way	Installation	IOM7221
Exhaust Flow Coefficient	0.1 Cv	Preventive Maintenance Kit	7R005
Maximum Pressure Differential	285 psig	Seal Material	NBR
Configuration	Normally Closed	Voltage	12 VDC
Coil Type	Leads-only (Incl. Ground Lead)	Body Material	303 Stainless Steel
Port Size (inch)	1/4 NPT	Orifice Size (inch)	1/16
Minimum Pressure Differential (psi)	0	Function	3-Way
Maximum Operating Pressure Differential (psig)	285
