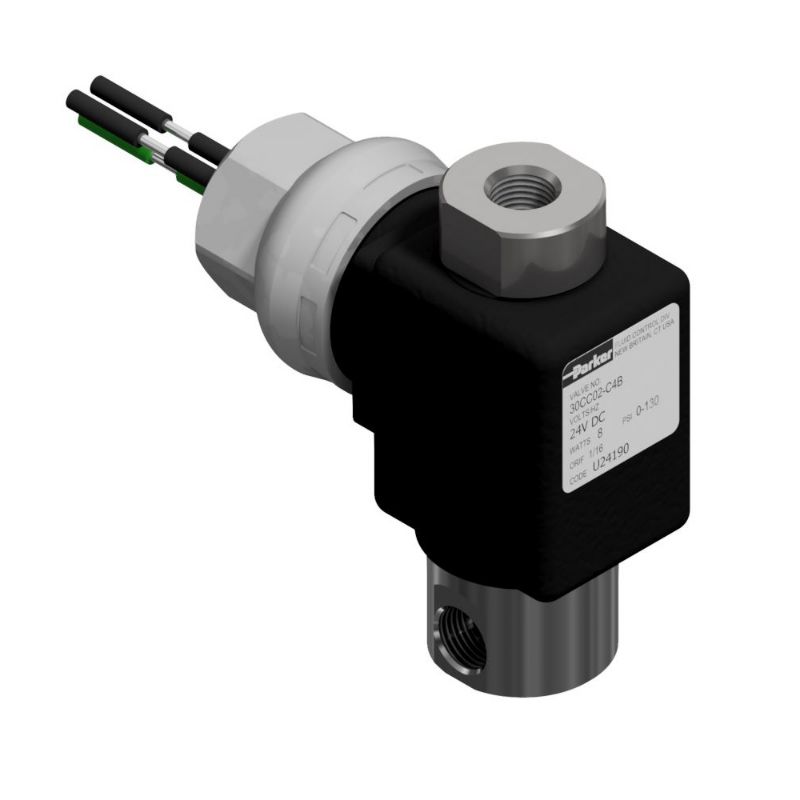

Parker 30CC02GV4C4B - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	14 In Stock

Brand Parker

Part No. 30CC02GV4C4B

$126.56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	3-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Exhaust Orifice Size	1/16 inch
Main Flow Coefficient	0.09 Cv	Media	General Purpose
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Seal Material	FKM
Ingress Protection Rating	NEMA 4X	Specifications Met	CE
Port Size	1/8 inch	Body Material	Stainless Steel 303
Insulation Class	F (155°C)	Orifice Size	1/16 inch
Input Voltage	24 VDC	Power Consumption	8 W
Maximum Fluid Temperature	240 °F	Maximum Ambient Temperature	125 °F
Maximum Pressure Differential	130 psi	Configuration	Pressure In Body - Out Sleeve
Preventive Maintenance Kit	4R002	Exhaust Flow Coefficient	0.10 Cv
Installation	IOM 304
