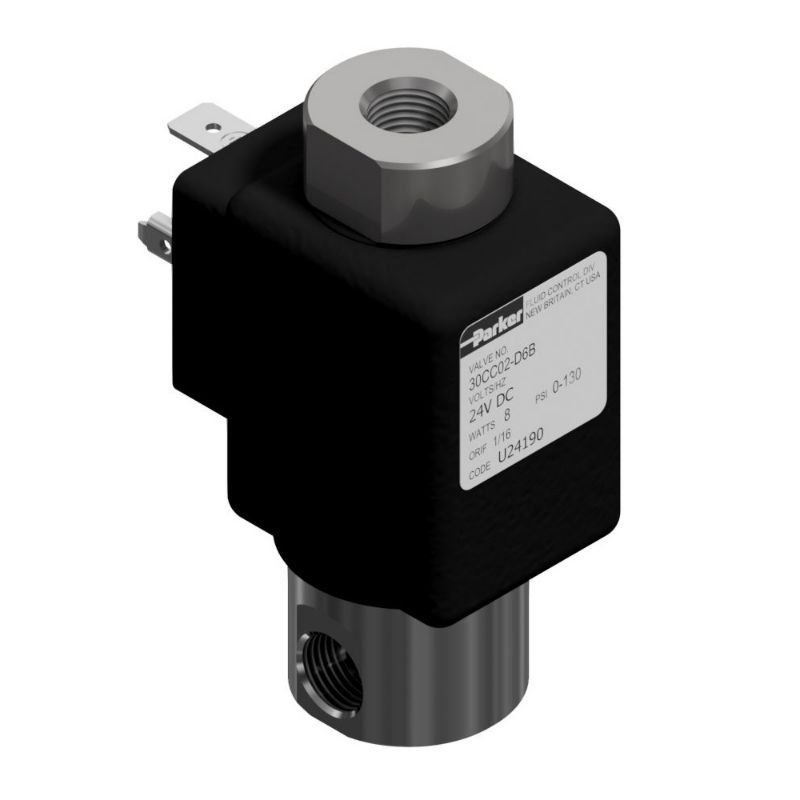

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 30CC02EV4D6E - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CC02EV4D6E

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	1/8
Port Type	NPT	Division	Fluid Control Division
Function	Normally Closed (NC)	Valve Type	3-Way
Input Voltage	24/60	Actuation Type	Direct Acting
Minimum Pressure Differential	0	Media	General Purpose
Coil Type	DIN 43650A / ISO 4400	Seal Material	FKM
Ingress Protection Rating	IP65	Body Material	Stainless Steel 303
Maximum Pressure Differential	200	Orifice Size	3/64
Maximum Fluid Temperature	240	Maximum Ambient Temperature	135
Insulation Class	H (180°C)	Specifications Met	CURus General Purpose
Power Consumption	10	Main Flow Coefficient	0.05
Configuration	Pressure In Body - Out Sleeve	Preventive Maintenance Kit	4R002
Exhaust Orifice Size	3/64	Exhaust Flow Coefficient	0.05
Installation	IOM 304
