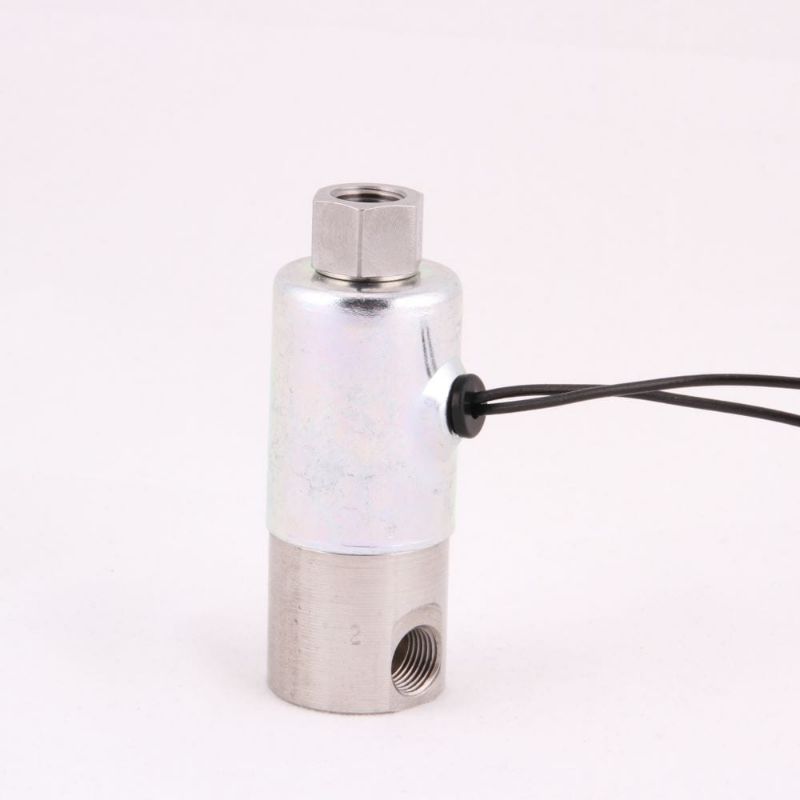

Parker 30CC02EV4B2A - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CC02EV4B2A

$108.04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	3-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Media	General Purpose
Seal Material	FKM	Port Size	1/8 inch
Body Material	Stainless Steel 303	Coil Type	Grommet
Insulation Class	F (155°C)	Orifice Size	3/64 inch
Power Consumption	8 W	Specifications Met	CURus General Purpose
Maximum Fluid Temperature	240 °F	Maximum Ambient Temperature	125 °F
Input Voltage	12 VDC	Main Flow Coefficient	0.05 Cv
Configuration	Pressure In Body - Out Sleeve	Preventive Maintenance Kit	4R002
Exhaust Orifice Size	3/64 inch	Exhaust Flow Coefficient	0.05 Cv
Installation	IOM 304	Maximum Pressure Differential	200 psi
