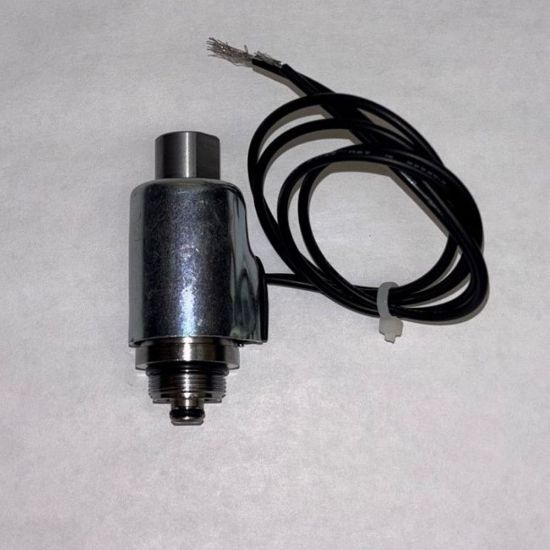

Parker 309CL5QV4B2F - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 309CL5QV4B2F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	3-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0	Exhaust Orifice Size	3/32
Media	General Purpose	Seal Material	FKM
Body Material	Stainless Steel 303	Port Size	3/4-24 UNS-2A
Coil Type	Grommet	Port Type	Cartridge
Installation	IOM CV4	Input Voltage	120/60
Maximum Fluid Temperature	240	Preventive Maintenance Kit	n/a
Maximum Ambient Temperature	135	Insulation Class	F (155°C)
Orifice Size	5/32	Specifications Met	CURus General Purpose
Main Flow Coefficient	0.38	Power Consumption	10
Configuration	Pressure In Body - Out Sleeve	Maximum Pressure Differential	25
Exhaust Flow Coefficient	0.20
