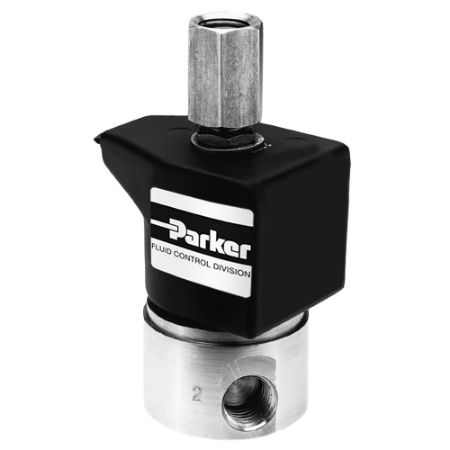

Parker 3-Way Normally Open, Pressure in Sleeve-Out Body, 1/8" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 3-Way Normally Open, Pressure in Sleeve-Out Body, Direct Acting 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Main Flow Coefficient | Input Voltage | Port Size | Minimum Pressure Differential | Body Material | Main Orifice Size | Power Consumption | Seal Material | Exhaust Flow Coefficient | Maximum Pressure Differential | Actuation Type | Port Type | Maximum Fluid Temperature | Minimum Fluid Temperature | Additional Options | Function | Exhaust Orifice Size | Valve Type | Flow Coefficient 2 | Orifice 2 Size | Product Series | Media | Coil Specifications Met | Coil Type | Number of Ports | Division | Coil Type | Voltage (V) | Maximum Pressure Differential (psi) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71395SN1GNJ1N0C111C1 | Quote Required | $194.29/each | EA | 0.28 Cv | 12.0 VDC | 1/8 inch | 0 psi | Stainless Steel 430 F | 1/16 inch | 10 W (DC) | NBR | 0.1 Cv | 150 psi (DC) | Direct Acting | NPT | 185 °F | 0 °F | Exhaust Adapter Nut | Pressure In Sleeve - Out Body | 1/16 inch | 3-Way | n/a | n/a | 7000 Series | General Purpose for Air | NEMA 4X | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3 | Fluid Control Division | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | 150 psi (DC) | 10 Watt (DC) |
