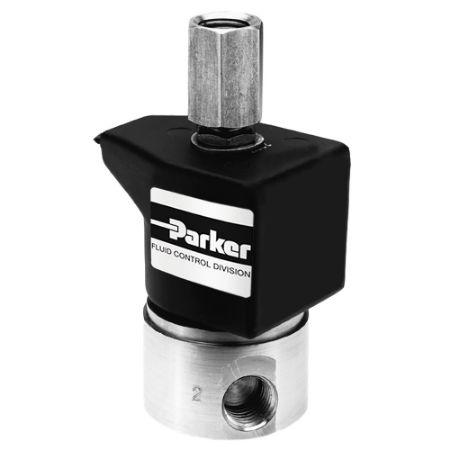

Parker 3-Way Normally Open, Pressure in Sleeve-Out Body, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Normally Open, Pressure in Sleeve-Out Body, Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Port Size | Division | Media | Function | Coil Type | Valve Type | Input Voltage | Seal Material | Actuation Type | Orifice 2 Size | Number of Ports | Flow Coefficient 2 | Coil Specifications Met | Minimum Fluid Temperature | Minimum Pressure Differential | Main Orifice Size | Exhaust Orifice Size | Maximum Pressure Differential | Main Flow Coefficient | Maximum Fluid Temperature | Power Consumption | Exhaust Flow Coefficient | Product Series | Additional Options | Body Material | Coil Type | Voltage (V) | Seal Material | Orifice Main (inch) | Maximum Pressure Differential (psi) | Power (Watts) | Flow Factor Main (Cv) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71395SN2GNJ1N0C111P3 | Quote Required | $198.23/each | EA | NPT | 1/4 inch | Fluid Control Division | Liquids and Gases | Normally Open (NO) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 3 | n/a | NEMA 4X | 0 °F | 0 psi | 1/16 inch | 1/16 inch | 150 psi (AC) | 0.28 Cv | 185 °F | 10 W (AC) | 0.1 Cv | 7000 Series | Exhaust Adapter Nut | Stainless Steel 430 F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | 1/16 | 150 psi (AC) | 10 Watt (AC) | 0.28 | ||
| 71395SN2KNJ1N0C111P3 | Quote Required | $198.23/each | EA | NPT | 1/4 inch | Fluid Control Division | Liquids and Gases | Normally Open (NO) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 3 | n/a | NEMA 4X | 0 °F | 0 psi | 3/32 inch | 3/32 inch | 125 psi (AC) | 0.28 Cv | 185 °F | 10 W (AC) | 0.17 Cv | 7000 Series | Exhaust Adapter Nut | Stainless Steel 430 F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | 3/32 | 125 psi (AC) | 10 Watt (AC) | 0.28 | ||
| 71395SN2KNJ1N0D100P3 | Quote Required | TBD | EA | NPT | 1/4 | Fluid Control Division | General Purpose for Air | Normally Open (NO) | DIN Form A, Class F | 3-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 3 | n/a | Class F | 0 | 0 | 3/32 | 3/32 | 125 psi (AC) | 0.28 | 185 | 10 W (AC) | 0.17 | 7000 Series | Exhaust Adapter Nut | Stainless Steel 430 F | DIN Form A, Class F | 110/50-120/60 | NBR | 3/32 | 125 psi (AC) | 10 Watt (AC) | 0.28 |
