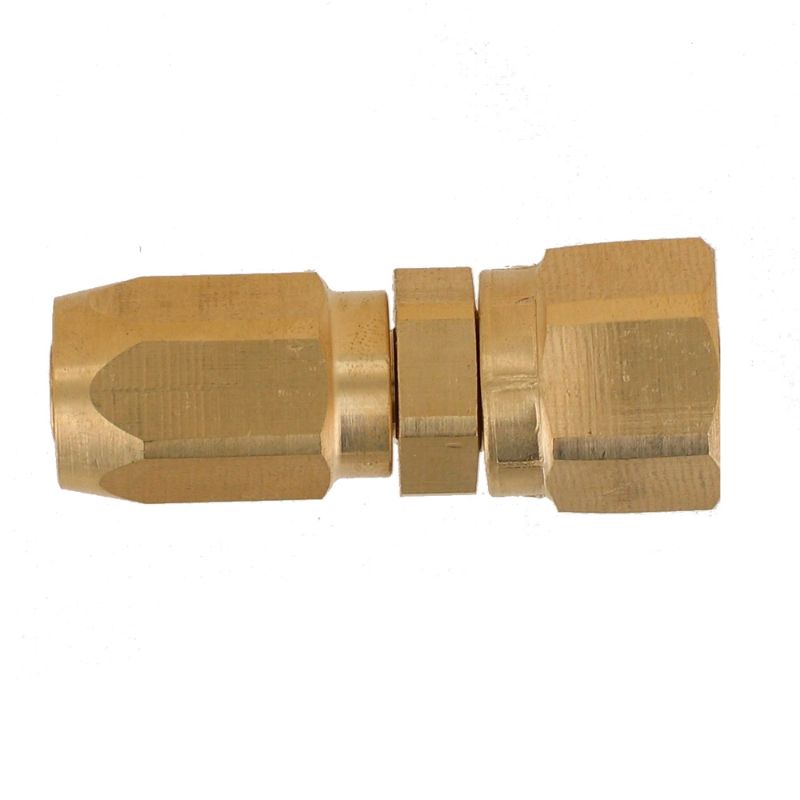

Parker 2TFMS-6-5B - Marine Hose Fittings – MS Series

Name: Parker 2TFMS-6-5B - Marine Hose Fittings – MS Series
SKU: 2TFMS-6-5B
Price: 30.31 USD
Availability: InStock

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

AFP Availability:

25 In Stock

Norfolk, VA

Partner Available:

56 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 2TFMS-6-5B

$30.31/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Industry	Marine
Maximum Operating Pressure	1500 psi (Dependent on hose)	Brand	Parker
Connection 1 Type	Hose	Specifications Met	n/a
Hex Size 1	5/8 inch (see drawing legend J)	For Fluid Type	Lubricants (Oils)
Configuration	Hose to Port	Fitting Length	51 mm (see drawing legend A)
Connection 2 Size	9/16"-24 inch Thread	Connection Length	33 mm
Coating	n/a	Hex Size	3/4 inch (see drawing legend H)
Connection 1 Size	8 mm	Division	Parflex Division
Technology	Hydraulics	Application	Marine
Shape	Straight	Product Type	Hose Fittings
Hex Size 2	5/8 inch (see drawing legend W)	Division	Parflex Division
Body Material	Brass	Connection 2 Type	Tube Connector
Shape	Straight	Body Material	BRASS
Connection 1 Hose Inside Diameter	5/16" (I.D.)	Connection 2 Size	9/16"-24
Connection 2 Type	Field Attachable, Marine Tube
