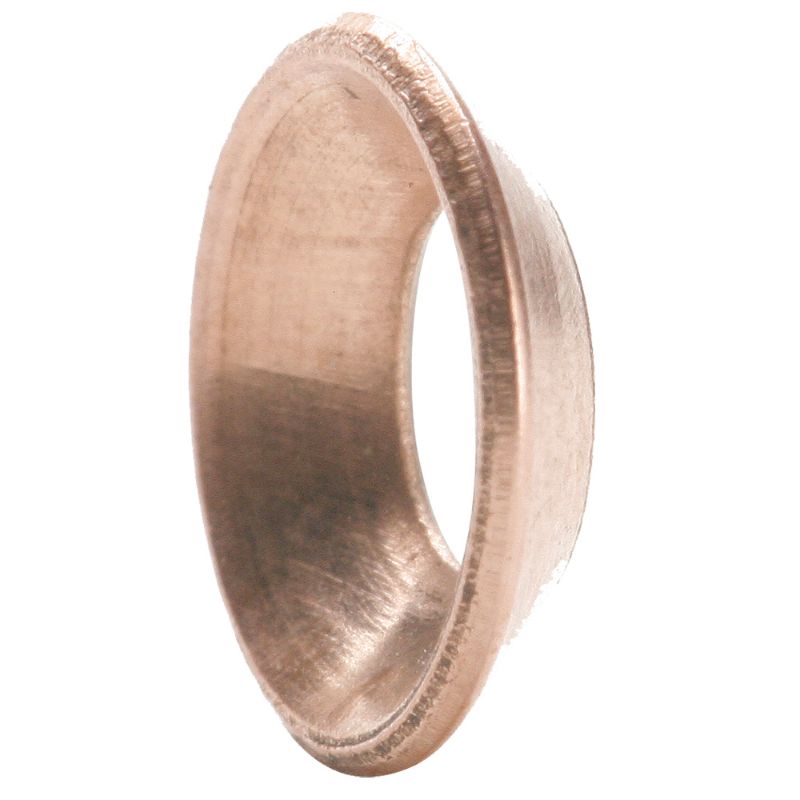

Parker 2GF-12 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	27 In Stock

Brand Parker

Part No. 2GF-12

$5.62/each

Products specifications

Attribute name	Attribute value
UOM	EA	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	121 °C	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Body Material	Brass	Nut Material	Brass
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Minimum Operating Temperature	-53 °C
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Brand	Parker
Maximum Operating Pressure	193 bar	Connection 1 Type	Flare
Connection 3 Tube Outside Diameter	NA	Product Style	Flare
Connection 2 Type	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	NA
Connection 1 Thread Size	NA	Shape	Flare Gasket
