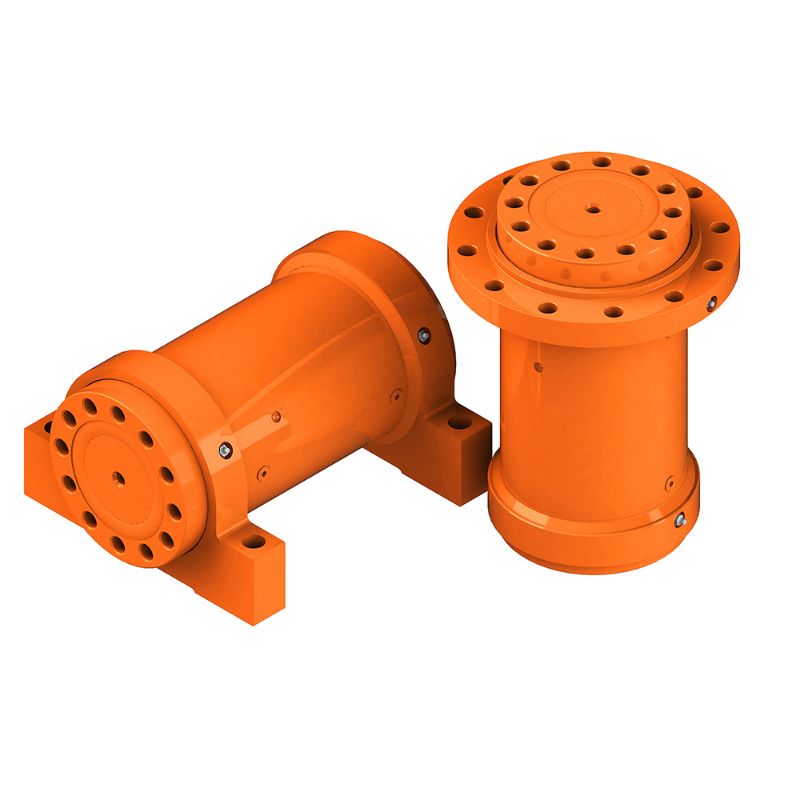

Parker 28432 - Helical Hydraulic Rotary Actuator - Helac L30-Series

The Helac L30 Series is a heavy duty helical hydraulic rotary actuator that is suitable for harsh environments. Designed for applications that require high bearing capacity, the L30 Series features foot or flange output with 180° or 360° rotation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 28432

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Cylinder Division	Technology	Hydraulics
Maximum Operating Pressure	3000	Division	Cylinder Division
Application	Hydraulic	Mounting Type	Foot
Brand	Helac	Industry	Hydraulic
Product Type	Helical	Width	Varies See Catalog for Dimensions
Height	Varies per Model. See Catalog for Specifications.	Length	Varies per Model. See Catalog for Specifications.
Rotation Angle	180	Operating Pressure	3000
Maximum Output Torque	3000	Product Series	L30 Series
Weight	160	Displacement	72.2
Drive Torque	42000	Torque Rating	42000
Holding Torque	103000	Straddle Moment	273000
Axial Load Capacity	6000	Radial Load Capacity	8000
Model Number	L30-42-E-FT-180-S2-O-H
