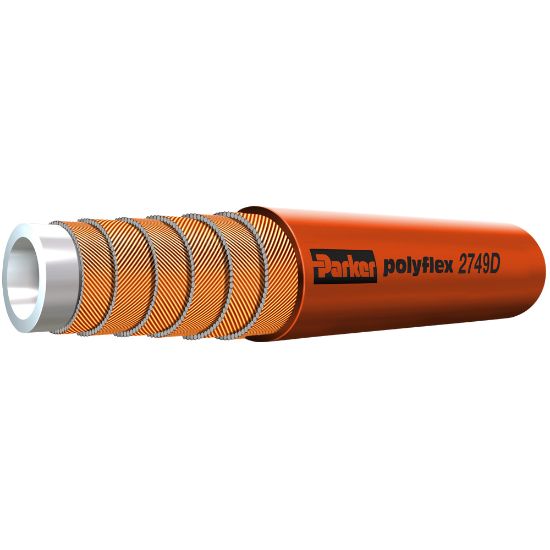

Parker 2749D-05V35 - OBSOLETE: Water Jetting Hose - 35,000 psi and up

Note: This product is no longer available – please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2749D-05V35

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Media	Chemicals
Cover Material	Polyamide (PA)	Inside Diameter	5/16
Weight	0.56	Specifications Met	DIN 1829-2
Maximum Operating Temperature	158	Minimum Operating Temperature	14
Hose Inner Tube Material	Polyoxymethylene (POM)	Size	-5
Minimum Bend Radius	9	Compatible Fitting	2X Series
Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire	Application	High Pressure Cleaning
Maximum Operating Pressure	43645	Design Factor	2.3:1
Outside Diameter	0.680	Hose I.D. (inch)	5/16
Maximum Working Pressure (psi)	43,645	Notes	Obsolete

Product resources

Literature and Reference Materials, Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
