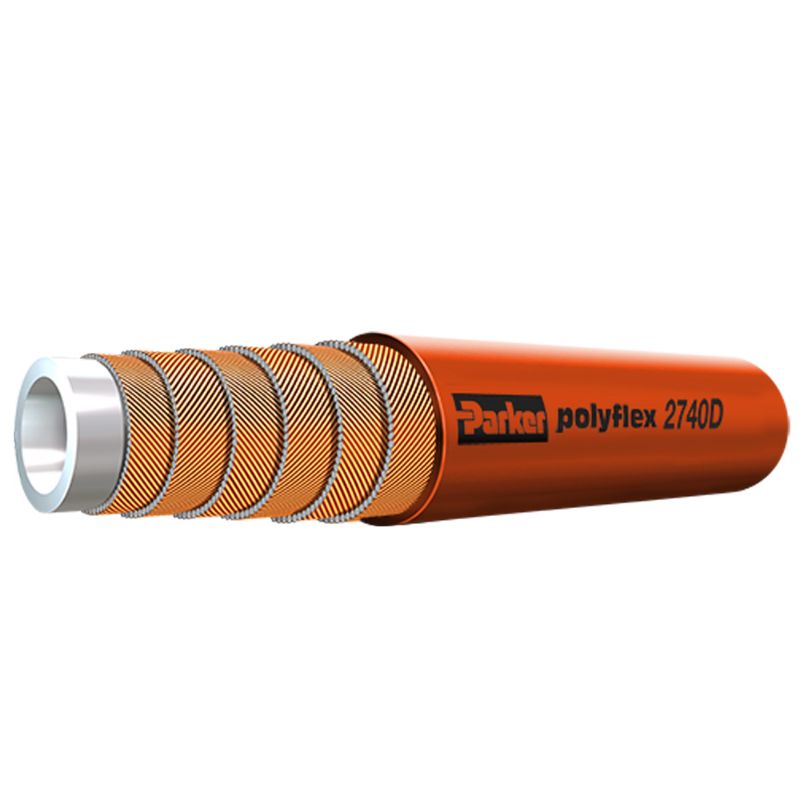

Picture of Parker 2740D-03V35 - OBSOLETE: Water Jetting Hose - 35,000 psi and up

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2740D-03V35 - OBSOLETE: Water Jetting Hose - 35,000 psi and up

Note: This product is no longer available – please contact us for further assistance.
Availability:
637 In Stock
Richmond, VA637
Partner Available:Quote Required
Brand Parker
Part No. 2740D-03V35
$28.32
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTDivisionParflex Division
Minimum Operating Temperature-10 °CMediaWater
Maximum Operating Temperature70 °CCover MaterialPolyamide (PA)
Inside Diameter4.8 mmDesign Factor2.5:1
Specifications MetDIN 1829-2Hose Inner Tube MaterialPolyoxymethylene (POM)
Size-3Outside Diameter0.520 inch
ApplicationHydrodemolitionMinimum Bend Radius200 mm
Compatible Fitting2X SeriesHose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
Maximum Operating Pressure2800 barWeight0.32 kg/m
Hose I.D. (inch)3/16NotesObsolete - see PFX30-03
Maximum Working Pressure (psi)40,600
