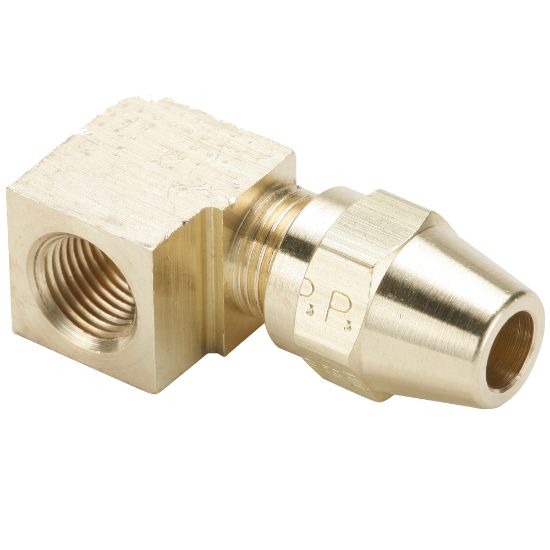

Parker 270AB-6-2 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 270AB-6-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Application	Air Brake	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-53 °C	Nut Material	Brass
Sleeve Material	Brass	Maximum Operating Pressure	400 psi
Tube Material	Annealed Copper	Specifications Met	DOT FMVSS 571.106, SAE J246
Thread Sealant Material	Vibra-Seal 516	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	3/8
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
