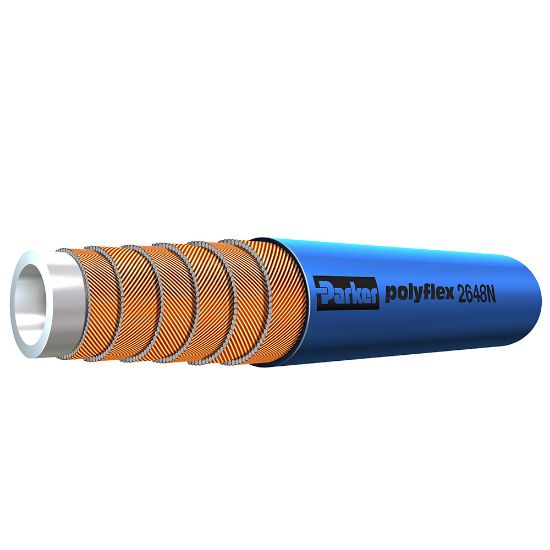

Picture of Parker 2648N-16V32 - Water Jetting Hose - 2640N/2648N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2648N-16V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2648N-16V32
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature14 °F
MediaChemicalsMinimum Bend Radius400 mm
Hose Inner Tube MaterialPolyamide (PA)Inside Diameter1 inch
Cover MaterialPolyamide (PA)Size-16
Design Factor2.5:1Specifications MetDIN 1829-2
Maximum Operating Pressure1500 barMaximum Operating Temperature158 °F
ApplicationIndustrial CleaningWeight3.10 kg/m
Outside Diameter40.8 mmCompatible FittingCX Series
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireHose I.D. (inch)1
Maximum Working Pressure (psi)21,750
