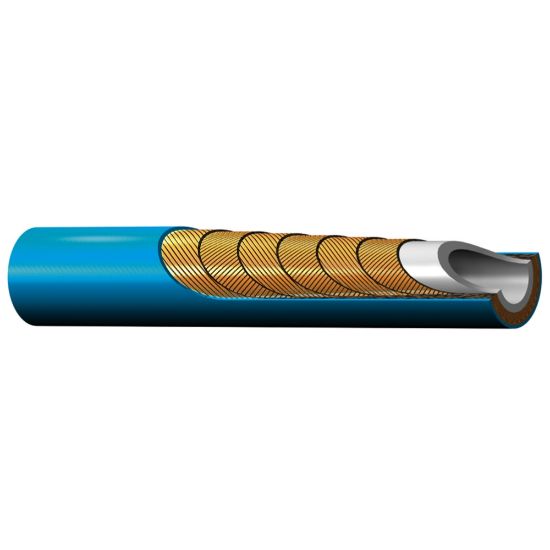

Picture of Parker 2648N-12V32 - Water Jetting Hose - 2640N/2648N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2648N-12V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2648N-12V32
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature14 °F
MediaWaterHose Inner Tube MaterialPolyamide (PA)
Maximum Operating Temperature70 °CSize-12
Cover MaterialPolyamide (PA)Inside Diameter19 mm
Design Factor2.5:1ApplicationShipbuilding
Specifications MetDINMaximum Operating Pressure160.0 MPa
Weight1.53 kg/mOutside Diameter1.330 inch
Compatible FittingJX SeriesMinimum Bend Radius350 mm
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireHose I.D. (inch)3/4
Maximum Working Pressure (psi)23,200
