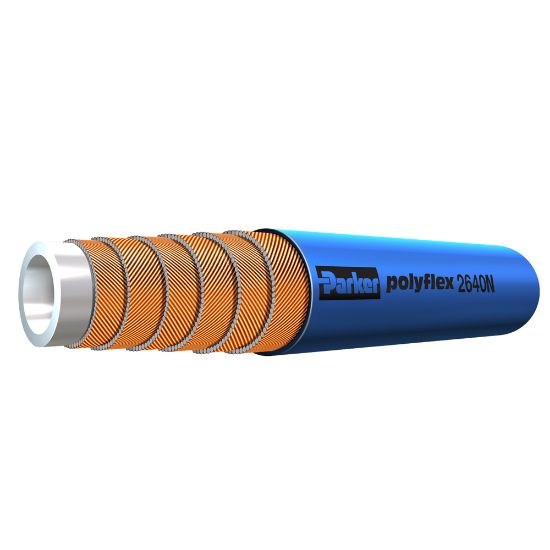

Picture of Parker 2640N-08V32 - Water Jetting Hose - 2640N/2648N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2640N-08V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2640N-08V32
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature-10 °C
MediaChemicalsSize-8
Inside Diameter1/2 inchHose Inner Tube MaterialPolyamide (PA)
Cover MaterialPolyamide (PA)Design Factor2.5:1
Outside Diameter0.960 inchSpecifications MetDIN 1829-2
Maximum Operating Temperature158 °FApplicationIndustrial Cleaning
Minimum Bend Radius290 mmMaximum Operating Pressure180 MPa
Weight1.37 lb/ftCompatible FittingJX Series
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireHose I.D. (inch)1/2
Maximum Working Pressure (psi)26,100
