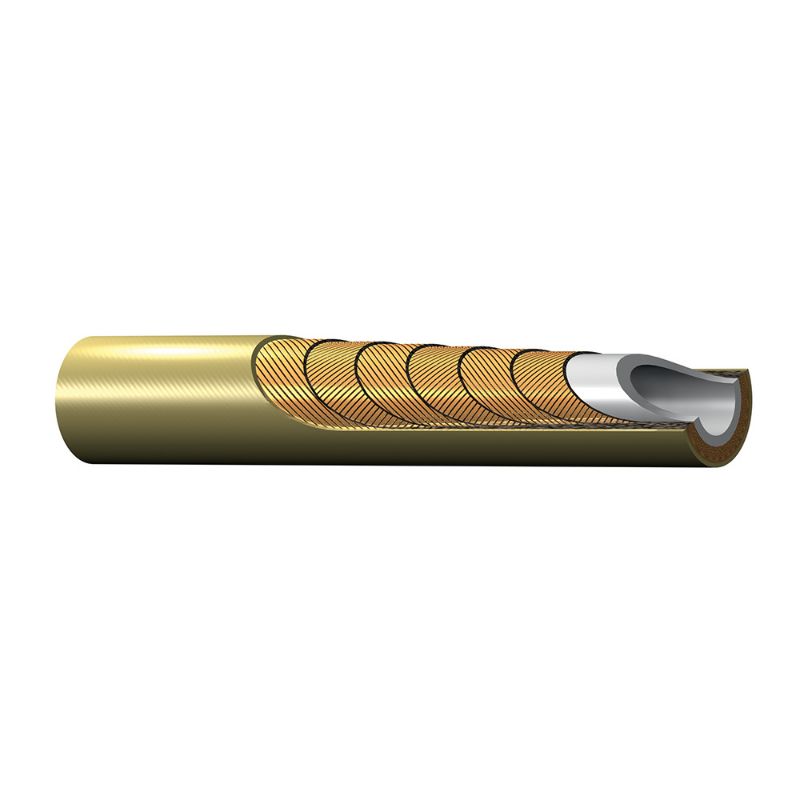

Parker 2640M-08V38 - ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2640M-08V38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Design Factor	4:1	Maximum Operating Temperature	100 °C
Size	-8	Application	Subsea BOP
Inside Diameter	12.7 mm	Media	Petroleum Hydraulic Fluids
Outside Diameter	0.970 inch	Specifications Met	ISO 13628-5
Minimum Bend Radius	290 mm	Hose Inner Tube Material	Proprietary Material
Compatible Fitting	5X Series	Maximum Operating Pressure	103.5 MPa
Weight	0.90 lb/ft	Hose Reinforcement Material	6 Closed Spiral Layers of High Tensile Steel Wire
Hose I.D. (size)	-8	Maximum Working Pressure (psi)	15,000
