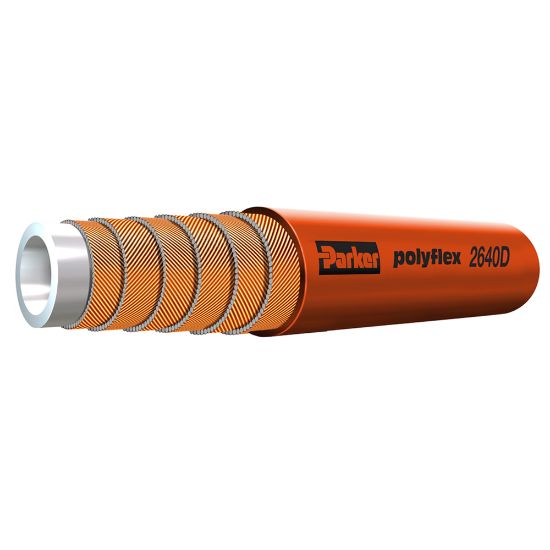

Picture of Parker 2640D-025V35 - High Pressure Water Jet Hose - 2640D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2640D-025V35 - High Pressure Water Jet Hose - 2640D

High Pressure 2640D water jet hoses handles pressures up to 40,600 psi (4,000 bar), making it ideal for water jet cutting equipment and ship washdown applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2640D-025V35
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature-10 °C
MediaChemicalsMinimum Bend Radius140 mm
Maximum Operating Temperature70 °CCover MaterialPolyamide (PA)
ApplicationHigh Pressure HydraulicsWeight0.20 lb/ft
Design Factor2.5:1Specifications MetDIN 1829-2
Inside Diameter4 mmHose Inner Tube MaterialPolyoxymethylene (POM)
Maximum Operating Pressure40600 psiOutside Diameter12 mm
Compatible Fitting2X SeriesHose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
Hose I.D. (inch)5/32
