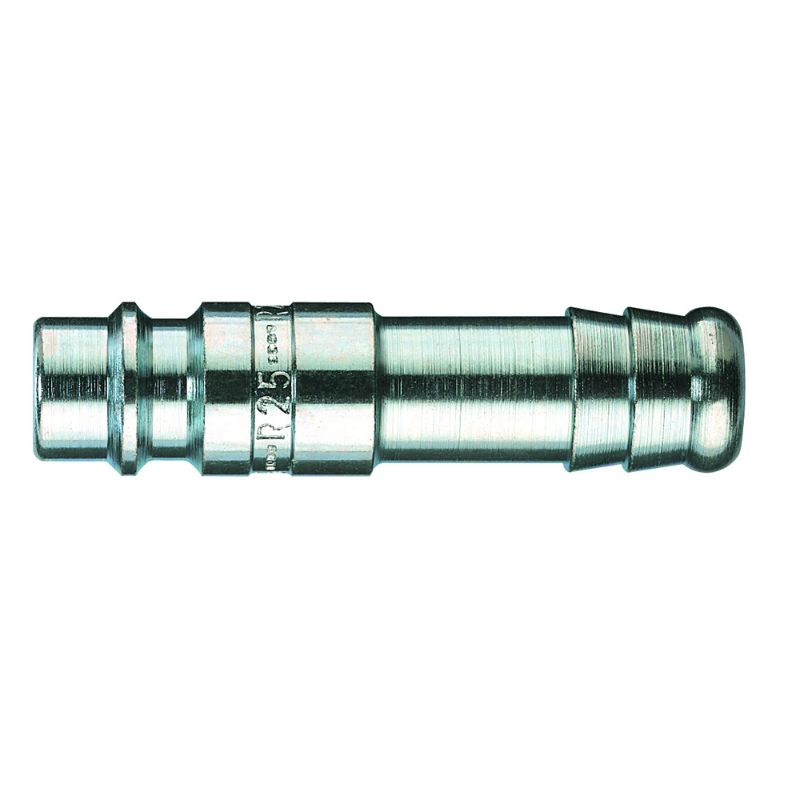

Parker 25SFTF06SXZ - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 25SFTF06SXZ

$13.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Maximum Operating Temperature	212.0 °F	Media	Low pressure fluids and compressed air
Application	Air	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-4.0 °F	Division	Quick Coupling Division
Interchange Type	European High Flow	Maximum Operating Pressure	300 psi
Division	Quick Coupling Division	Valve Type	Unvalved
Hose I.D. (inch)	1/4	Body Size (inch)	1/4
Connection Thread Size (inch)	na	Connection Type	Hose barb
Thread Style	na	Coupling Half	Nipple
