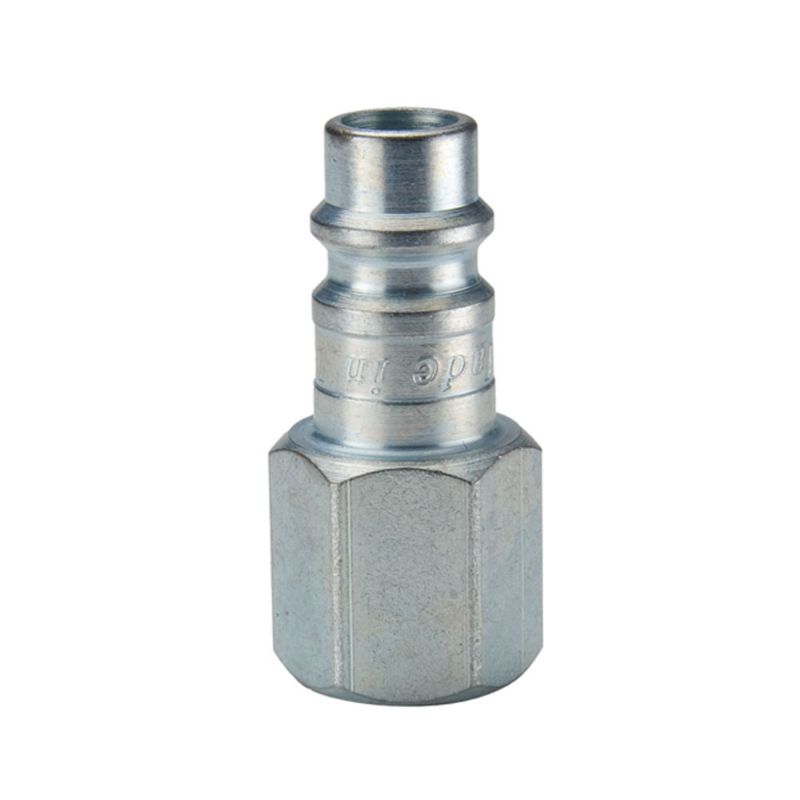

Parker 25SFIN17SXZ - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. 25SFIN17SXZ

$6.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Interchange Type	European High Flow
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	212.0 °F
Division	Quick Coupling Division	Valve Type	Unvalved
Body Material	Steel	Media	Low pressure fluids and compressed air
Division	Quick Coupling Division	Minimum Operating Temperature	-4.0 °F
Plating Type	Zinc with clear trivalent chromate	Application	Air
Body Size (inch)	1/4	Hose I.D. (inch)	na
Connection Thread Size (inch)	3/8 - 18	Thread Style	Female
Connection Type	NPTF	Coupling Half	Nipple
