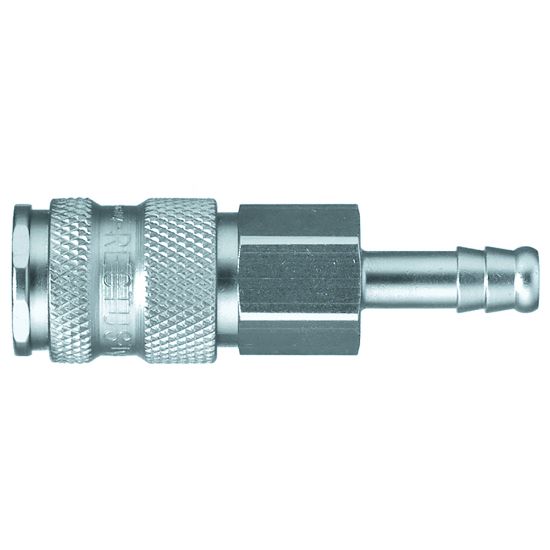

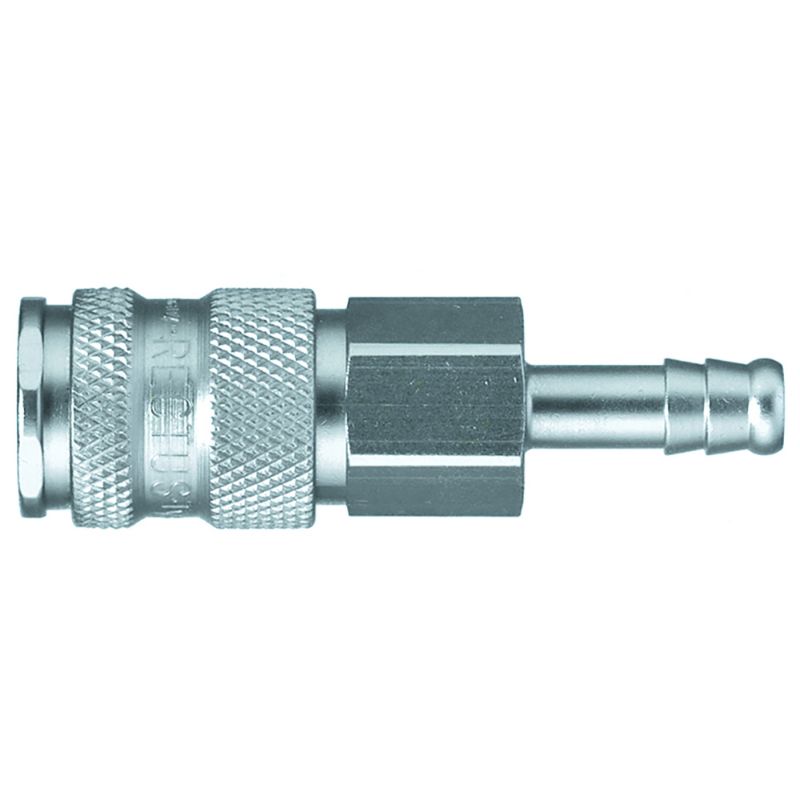

Parker 25KATF10MPN - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 25KATF10MPN

$51.58/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Nickel Plated Brass
Media	Low pressure fluids and compressed air	Lock Type	Locking balls
Division	Quick Coupling Division	Plating Type	Nickel plating on steel sleeve
Minimum Operating Temperature	-20.0 °C	Application	Air
Interchange Type	European High Flow	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	100 °C
Sleeve Type	Push to connect	Division	Quick Coupling Division
Valve Type	Valved	Hose I.D. (inch)	3/8
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Connection Type	Hose barb	Thread Style	na
Coupling Half	Coupler
