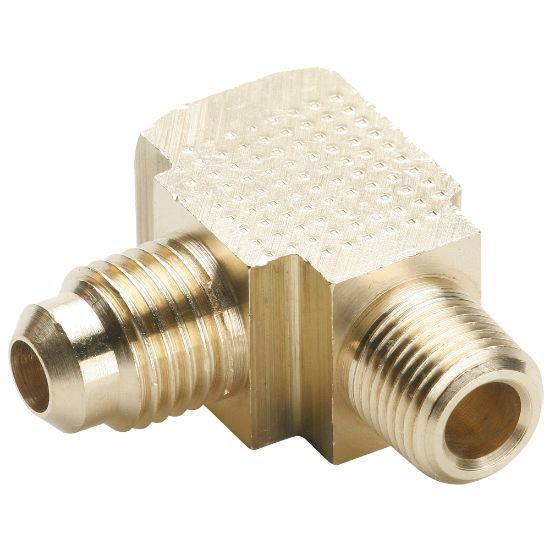

Parker 256F-4-2 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 256F-4-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Body Material	Brass	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	1,400 psi
Connection 1 Type	Flare	Connection 2 Type	Flare
Connection 1 Thread Size	7/16-20 inch	Connection 1 Tube Outside Diameter	1/4 inch
Product Style	Flare to Pipe	Connection 3 Type	Male Pipe
Connection 3 Thread Size	1/8 inch	Connection 3 Tube Outside Diameter	NA
Connection 2 Thread Size	1/4 inch	Connection 2 Tube Outside Diameter	NA
Shape	Adapter Tee
