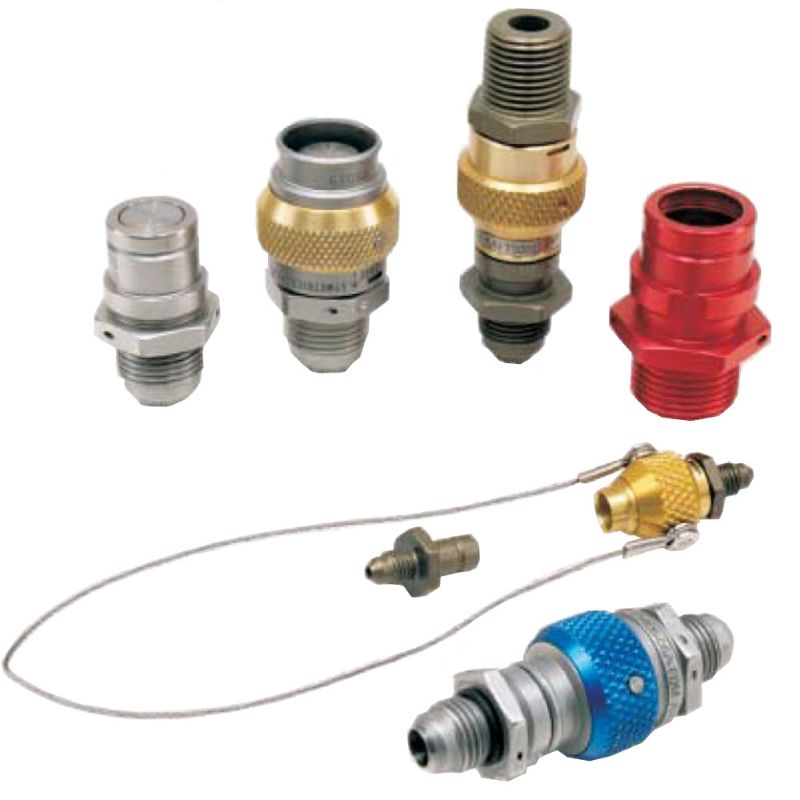

Parker 25402-02A-E0M - Slide-Lok Quick-Disconnect Couplings

Couplings from the Slide-LokTM quick disconnect series are ideal selections when size, weight, performance, and reliability are critical in cooling, fuel, hydraulic, and pneumatic system applications across a variety of temperature and pressure ranges.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 25402-02A-E0M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Stainless Steel	Maximum Operating Pressure	4000
Division	Stratoflex Products Division	Minimum Fluid Temperature	-65
Minimum Operating Pressure	-5	Burst Pressure	10,000
Proof Pressure	6000	Maximum Air Inclusion	0.003 cc
Maximum Pressure to Connect	1500	Maximum Spill Volume at Disconnection	0.002 cc
Outside Diameter (inch)	0.75	Fluid Type	EGW, PGW, Pnuematic
Fitting Type	SAE AS4395E02	Line Size - Inlet	1/8 inch
Overall Length (inch)	1.25 (hex to hex)	Maximum Fluid Temperature (F)	250
Maximum Operating Pressure (psig)	4000
