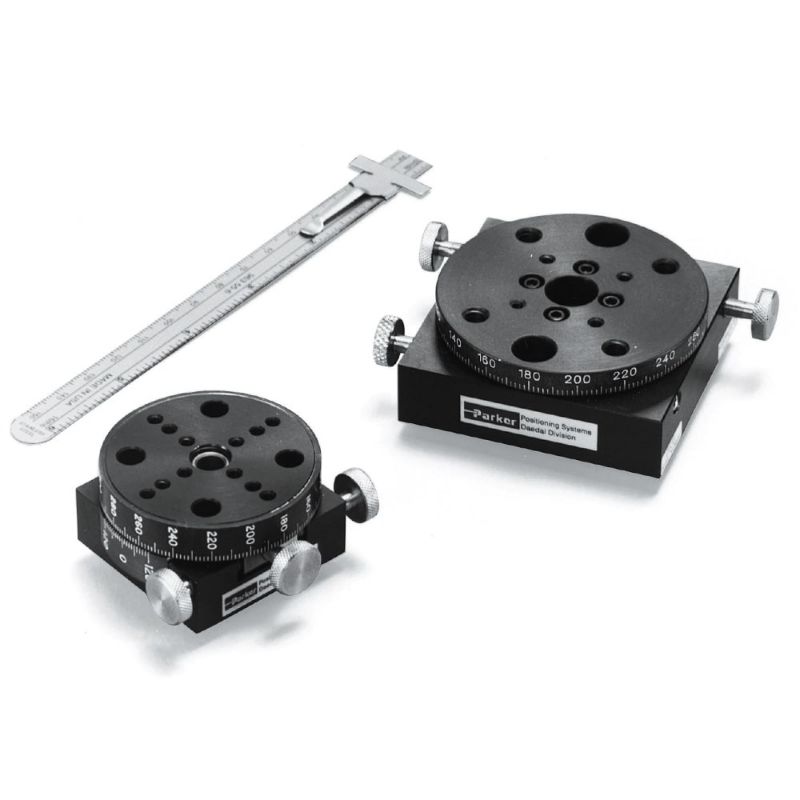

Parker 2535 - Tangent Arm Driven Manual Rotary Stages - 2500 Series

The 2500-series of tangent arm driven manual rotary stages offer low friction rotary positioning, precise angular adjustment at any position and position locking. Available with optional dial or vernier, they are suitable for payloads of up to 10 lbs

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2535

$15.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Load Capacity	10
Product Type	Rotary Stage	Product Series	2500 Series
Width	2.62	Maximum Travel Angle	360
Mounting Option	English Model	Number of Axes	1
Division	Electronic Motion and Controls Division	Bearing Type	Cross Roller
Drive Train Type	Vernier, 12 arc-min	Type	English Model
Width (inch)	2.620	Drive Mechanism	12 arc-min vernier
