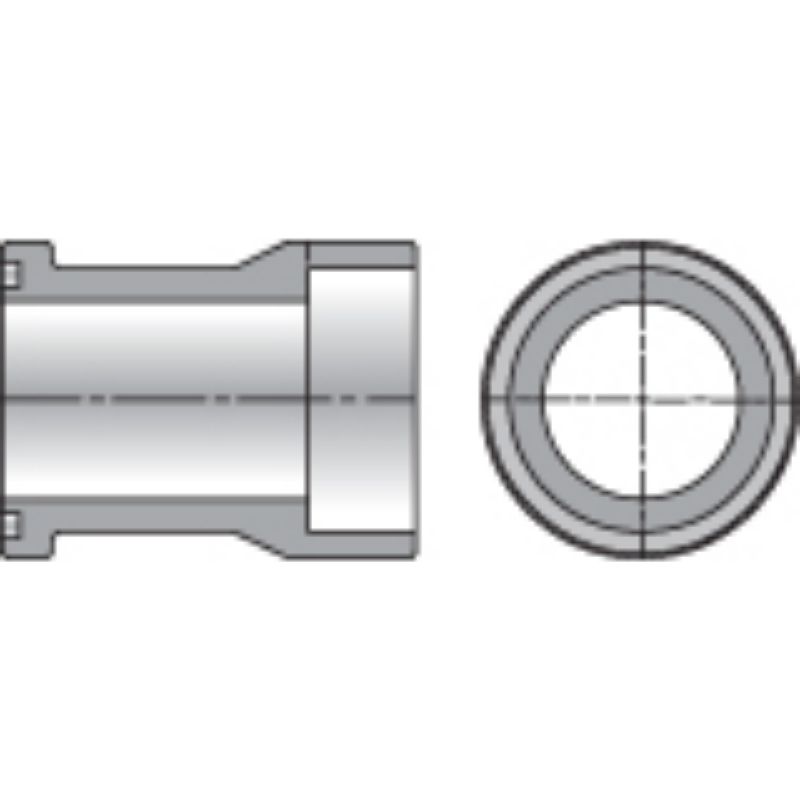

Parker 24W7HQ1SX - 4-Bolt Hydraulic Flanges and Components

Parker's 4-bolt hydraulic flanges and components are proven leak-free connections, especially suited for larger sizes, higher pressures and assembly in tight quarters.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24W7HQ1SX

$209.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	2700 psi	Includes	n/a
Flange Size	Code 61	O-Ring Material	n/a
Specifications Met	ISO 6162-1	Body Material	Steel
Flange	Code 61	Face Style	na
Connection Tube O.D. (inch)	na	Connection Thread Size (inch)	na
Connection Style	Weld Socket Flange Connector	Connection 1 Style	Extended Pipe Weld Socket
Flange Size (inch)	1 1/2	Connection Pipe O.D. (inch)	1 1/2

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
