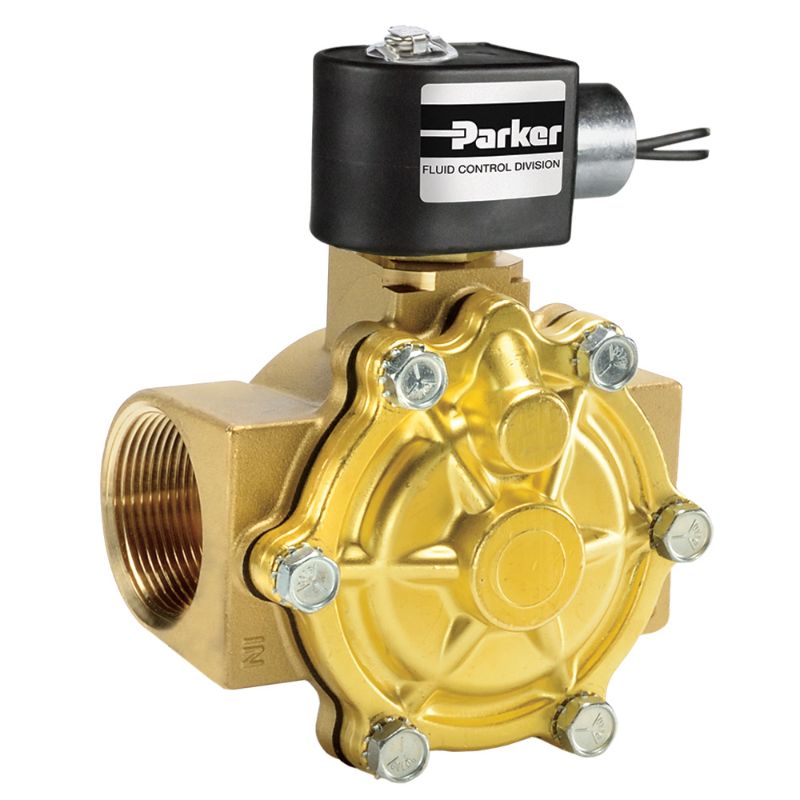

Parker 24F24O2180ACF4C15 - Parker 2-Way Normally Open, 1-1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1-1/2" NPT Solenoid Valves provide operating pressures of 125 PSI and flow factors of 22.5 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24F24O2180ACF4C15

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Division	Fluid Control Division	Port Size	1-1/2
Media	General Purpose for Air	Function	Normally Open (NO)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Valve Type	2-Way
Input Voltage	220/50 to 240/60	Seal Material	NBR
Orifice 2 Size	n/a	Product Series	Gold Ring Series
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Maximum Fluid Temperature	180
Minimum Fluid Temperature	0	Minimum Pressure Differential	5
Power Consumption	11	Actuation Type	Piloted
Maximum Pressure Differential	125	Orifice 1 Size	1-1/4
Flow Coefficient 1	22.5	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	220/50-240/60
