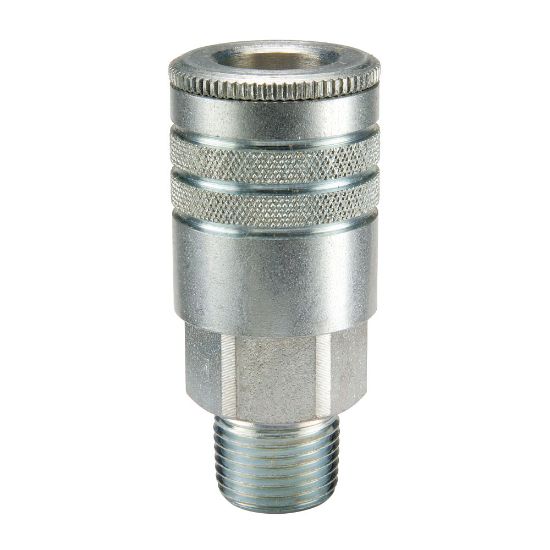

Parker 24F - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

19 In Stock

North Chesterfield, VA	6
Ashland, VA	3 (Pickup only)
West Knoxville, TN	3
Johnson City, TN	3 (Pickup only)
Richmond, VA	2 (Pickup only)
Jacksonville, FL	2

Partner Available:

130 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 24F

$37.50/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Application	Air
Body Material	Steel	Seal Material	Nitrile
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Valve Type	Tubular
Dimensional Weight	0.07997601918465227 lb	Maximum Operating Pressure	300 psi
Coupling Half	Coupler	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Division	Quick Coupling Division
Sleeve Type	Manual	Maximum Operating Temperature	250 °F
Body Material	Steel	Body Size (inch)	3/8
Thread Style	Male	Connection Thread Size (inch)	1/2 - 14
Connection Type	NPTF	Connection Hose I.D. (inch)	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
