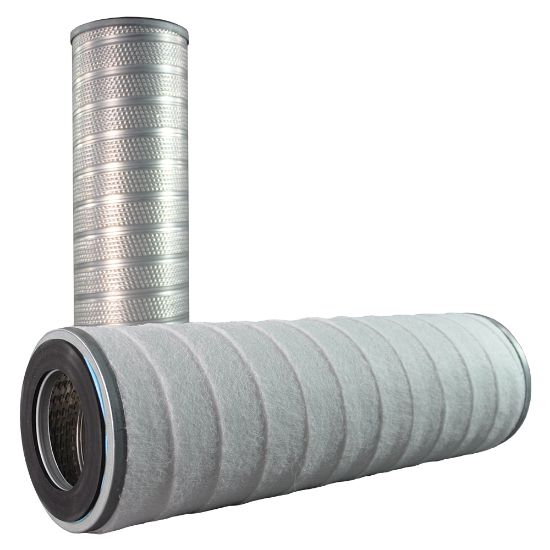

Parker 24989 - CHEMELEAN® CM Liquid Filter Cartridge

Chemelean® CM filter cartridges remove contaminants from a wide range of liquid applications. They are 6"OD with open-end sealing and 20" or 40" lengths. The cartridge range offers pleated medias as well as a PEACH® depth option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24989

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	PECO
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Industry	Oil & Gas	Technology	Filtration
Application	Liquid Particulate Filtration	Flow Direction	Outside-to-inside
Changeout Pressure Differential	35 psid	Maximum Pressure Differential	50 psid
Quantity per Box	1	End Cap Configuration	DOE - Double Open End
Nominal Inside Diameter	3.5 inch	Nominal Outside Diameter	6 inch
pH Range	3-9	Core Material	Tin-Plated Steel
Cartridge Length	20"	End Cap Material	Tin-Plated Steel
Maximum Operating Temperature	240 F	Micron Rating	1
Seal Material	Viton	Filter Material	Glass with Acrylic
Body Material	Tin-Plated Steel	Filter Construction	Pleated
Model Number	ELMT CM-G1-2010V	Product Series	CM-G
