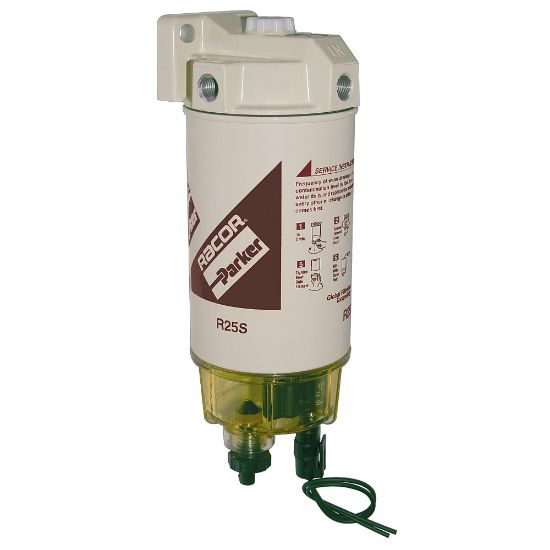

Parker 245R122 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 245R122

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 121 °C	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Filter Element Type	2 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	30 psi
Depth	4 inch	Width	4 inch
For Fluid Type	Diesel	Number of Ports	1 Inlet / 2 Outlet
Maximum Fluid Temperature	88.0 °C	Weight	2.2 lb / 1 Kg
Height	267.0 mm	Compatible Element	R25S = "2" Micron<br/>R25T = 10 Micron<br/>R25P = 30 Micron
Clean Pressure Drop	4.21 kPa	Location	North America and EMEA regions
Micron Rating	98% @ 4 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Port Size	1/4" NPTF	Bowl Material	Clear Engineering Plastic
Product Series	Diesel Spin-on 200	Heater Power Rating	12V / 300W (Diesel Only)
Integral Primer Pump Included	Hand Plunger Priming Pump (Diesel or Gasoline)	Flow Rate	45 gph (170 lph)

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--200 Diesel Spin-on--RSL0376 (PDF)
