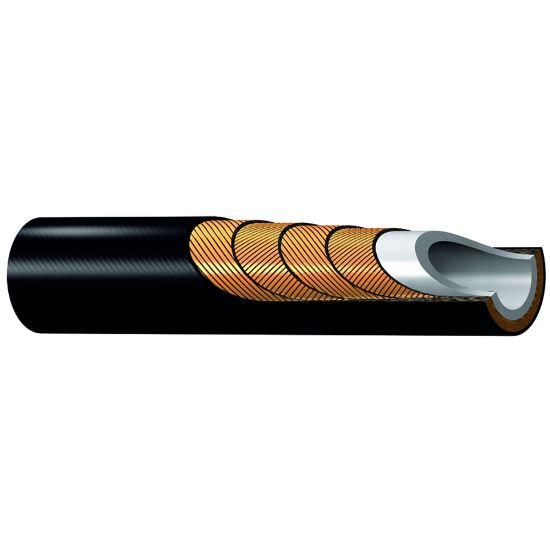

Parker 2448N-04V91 - Ultra High Pressure Hose - 2440N/2448N

High pressure Polyflex hose with low volumetric expansion for offshore applications such as, control fluids, acidizing, methanol injection and well stimulation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2448N-04V91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Inside Diameter	1/4 inch	Design Factor	4:1
Media	Water	Maximum Operating Temperature	100 °C
Cover Material	Polyurethane	Application	Well Stimulation
Compatible Fitting	8X Series	Specifications Met	ISO 13628-5
Hose Inner Tube Material	Polyamide 11	Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire
Weight	0.38 kg/m	Outside Diameter	13.7 mm
Minimum Bend Radius	150 mm	Maximum Operating Pressure	103.5 MPa
Hose I.D. (inch)	1/4	Maximum Working Pressure (psi)	15,000
