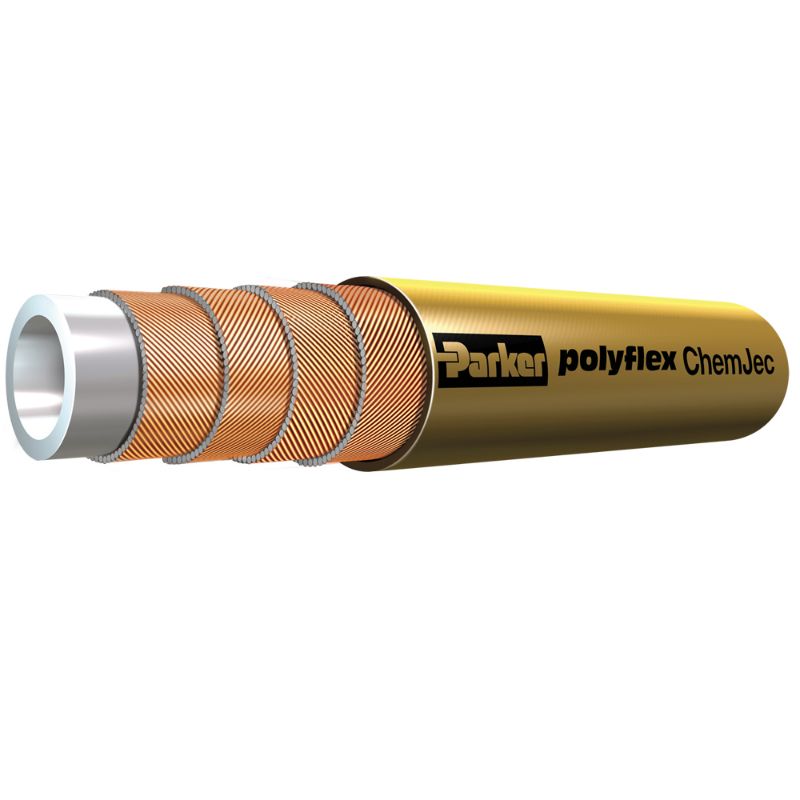

Parker 2448M-06V38 - ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2448M-06V38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Maximum Operating Pressure	10000 psi	Design Factor	4:1
Size	-6	Maximum Operating Temperature	100 °C
Minimum Bend Radius	8 inch	Application	Subsea BOP
Specifications Met	ISO	Inside Diameter	13/32 inch
Media	Petroleum Hydraulic Fluids	Hose Inner Tube Material	Proprietary Material
Hose Reinforcement Material	4 Closed Spiral Layers of High Tensile Steel Wire	Weight	0.83 kg/m
Outside Diameter	0.790 inch	Compatible Fitting	UX Series
Hose I.D. (size)	-6	Maximum Working Pressure (psi)	10,000
