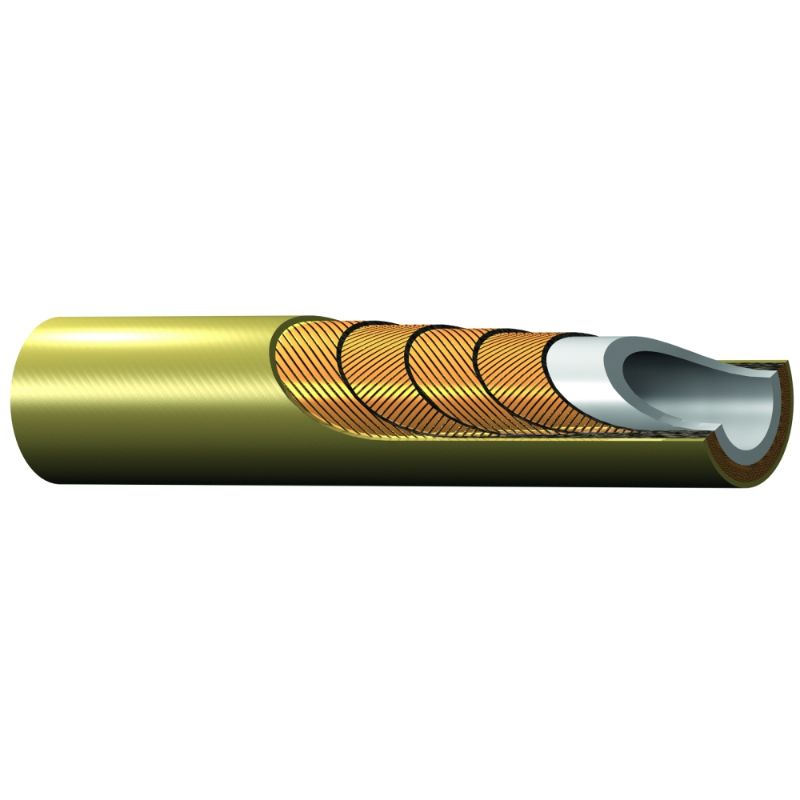

Parker 2448M-05V38 - ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2448M-05V38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Division	Parflex Division
Maximum Operating Pressure	15000	Design Factor	4:1
Maximum Operating Temperature	212	Application	Subsea BOP
Inside Diameter	5/16	Media	Petroleum Hydraulic Fluids
Size	-5	Compatible Fitting	LX Series
Specifications Met	ISO 13628-5	Minimum Bend Radius	9
Hose Inner Tube Material	Proprietary Material	Hose Reinforcement Material	4 Closed Spiral Layers of High Tensile Steel Wire
Weight	0.35	Outside Diameter	16.3
Hose I.D. (size)	-5	Maximum Working Pressure (psi)	15,000
