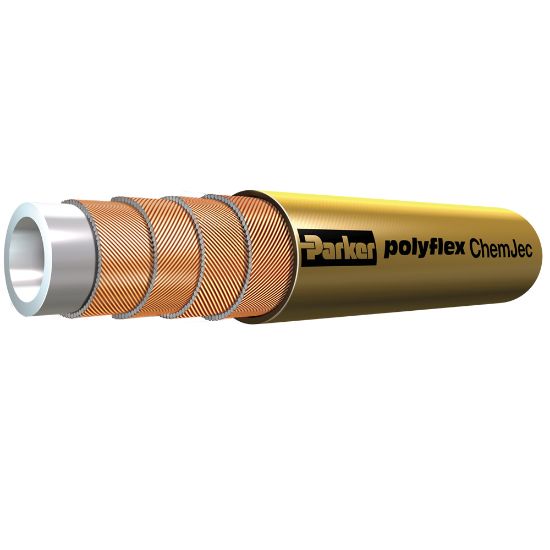

Parker 2448M-04V38 - ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2448M-04V38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Maximum Operating Pressure	15000 psi	Size	-4
Design Factor	4:1	Maximum Operating Temperature	212 °F
Application	Subsea BOP	Inside Diameter	6.4 mm
Minimum Bend Radius	9 inch	Media	Petroleum Hydraulic Fluids
Specifications Met	ISO 13628-5	Hose Inner Tube Material	Proprietary Material
Hose Reinforcement Material	4 Closed Spiral Layers of High Tensile Steel Wire	Weight	0.38 kg/m
Outside Diameter	0.540 inch	Compatible Fitting	UX Series
Hose I.D. (size)	-4	Maximum Working Pressure (psi)	15,000
