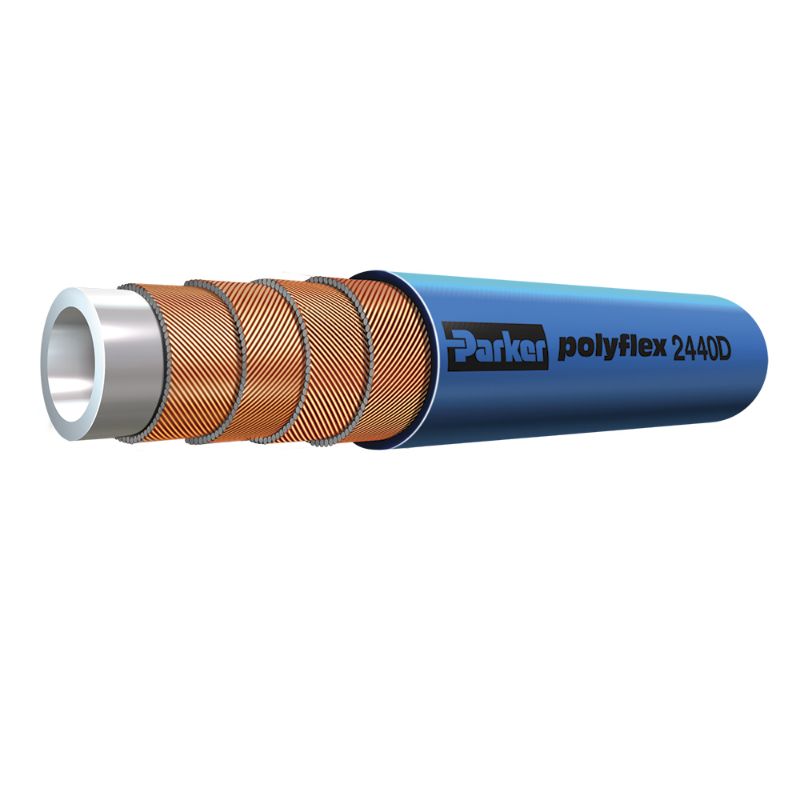

Parker 2448D-025V35-TC - Water Jetting Hose - 2440D/2448D

Parker Tough Cover Ultra High Pressure Water Jetting Hose handles pressures up to 43,000 psi (3000 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2448D-025V35-TC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Minimum Operating Temperature	14 °F
Media	Chemicals	Weight	0.22 kg/m
Application	Construction Equipment	Cover Material	Polyamide (PA)
Specifications Met	DIN 1829-2	Maximum Operating Temperature	158 °F
Inside Diameter	4 mm	Hose Inner Tube Material	Polyoxymethylene (POM)
Compatible Fitting	LX Series	Minimum Bend Radius	120 mm
Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire	Design Factor	2.16:1
Outside Diameter	9.9 mm	Maximum Operating Pressure	3010 bar
Hose I.D. (inch)	5/32	Maximum Working Pressure (psi)	43,645
