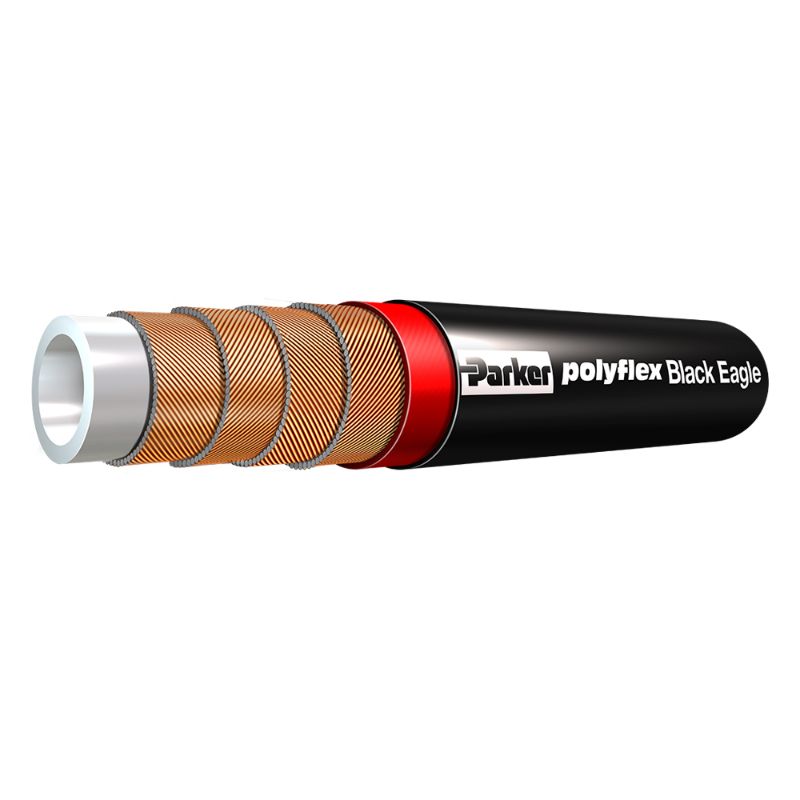

Parker 2440N-48V80-PFD - Black Eagle Hose

Black Eagle Oilfield service hose is up to 30% lighter than R13 rubber hose and 70% lighter than iron pipe.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2440N-48V80-PFD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Division	Parflex Division
Cover Material	Polyurethane	Cover Color	Black
Size	-48	Design Factor	2.5:1
Specifications Met	DNV GL	Maximum Operating Temperature	158
Compatible Fitting	LX Series	Media	Hydraulic Fluids, Chemicals
Weight	12.57	Application	Oil & Gas: Cementing operations, Acidizing, General Fluid and Gas Injection, Mud Circulation
Inside Diameter	3	Outside Diameter	4.800
Minimum Bend Radius	43-1/2	Hose Inner Tube Material	Polyamide 11, methanol washed
Maximum Operating Pressure	69	Hose Reinforcement Material	Four layers of high tensile steel wire
Hose Inside Diameter	3	Hose Outside Diameter	122
Hose I.D. (inch)	3	Maximum Working Pressure (psi)	10000
