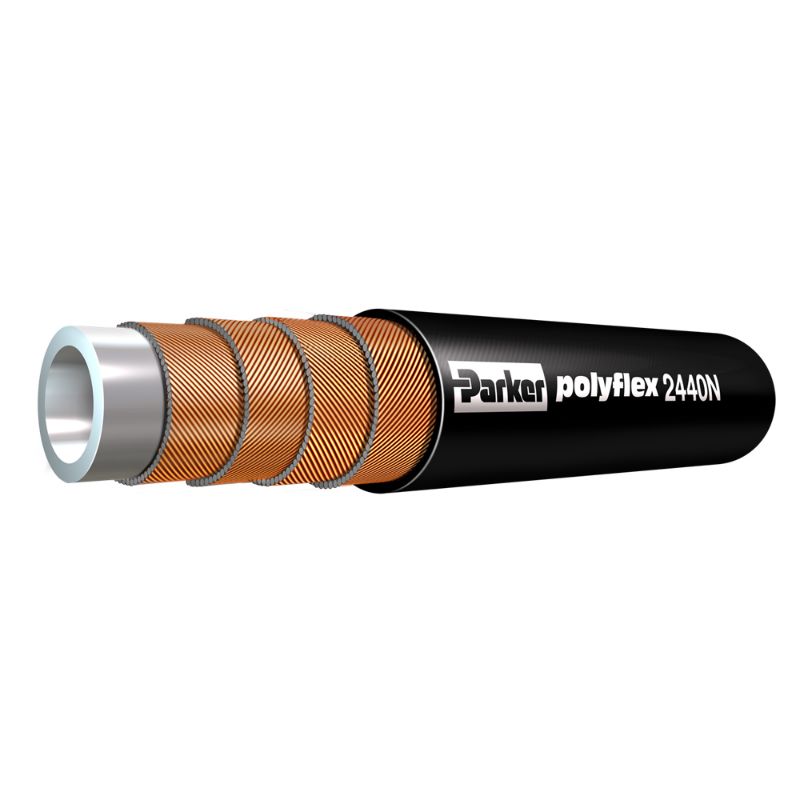

Parker 2440N-06V91 - Ultra High Pressure Hose - 2440N/2448N

High pressure Polyflex hose with low volumetric expansion for offshore applications such as, control fluids, acidizing, methanol injection and well stimulation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2440N-06V91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Design Factor	4:1	Maximum Operating Temperature	100 °C
Outside Diameter	19.5 mm	Cover Material	Polyurethane
Inside Diameter	9.5 mm	Minimum Bend Radius	7-1/2 inch
Hose Inner Tube Material	Methanol Washed	Media	Chemicals (Methanol) - Check your fluid compatibility with our catalogue chart.
Compatible Fitting	LX Series	Specifications Met	ISO 13628-5
Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire	Weight	0.73 kg/m
Application	Control Fluids	Maximum Operating Pressure	875 bar
Hose I.D. (inch)	3/8	Maximum Working Pressure (psi)	12,688
