Parker 2440M-05V38 - ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2440M-05V38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Division	Parflex Division
Maximum Operating Pressure	10000	Design Factor	4:1
Outside Diameter	0.640	Maximum Operating Temperature	212
Weight	0.33	Application	Subsea BOP
Inside Diameter	5/16	Minimum Bend Radius	7
Media	Petroleum Hydraulic Fluids	Size	-5
Compatible Fitting	LX Series	Specifications Met	ISO 13628-5

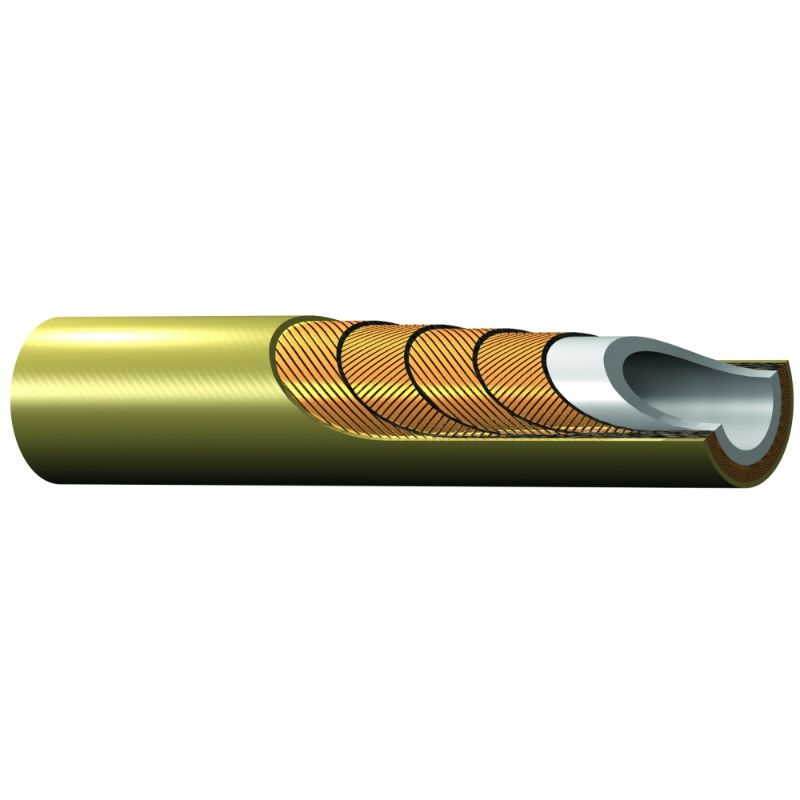

Hose Inner Tube Material	Proprietary Material	Hose Reinforcement Material	4 Closed Spiral Layers of High Tensile Steel Wire
Hose I.D. (size)	-5	Maximum Working Pressure (psi)	10,000
