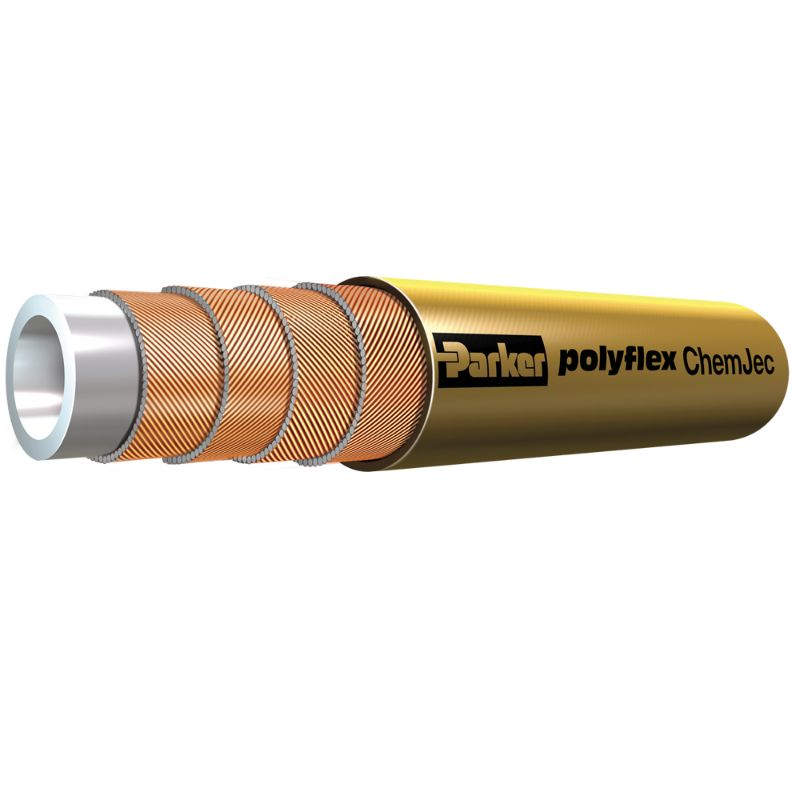

Parker 2440M-04V38 - ChemJec Hydraulic Umbilical Hose - 2440M/2448M/2640M

Chemjec hydraulic umbilical hoses feature excellent chemical resistance and are rated for pressures up to 15,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2440M-04V38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Division	Parflex Division
Size	-4	Design Factor	4:1
Maximum Operating Temperature	212	Application	Subsea BOP
Minimum Bend Radius	6	Inside Diameter	1/4
Media	Petroleum Hydraulic Fluids	Compatible Fitting	8X Series
Specifications Met	ISO 13628-5	Maximum Operating Pressure	12500
Weight	0.21	Outside Diameter	0.520
Hose Inner Tube Material	Proprietary Material	Hose Reinforcement Material	4 Closed Spiral Layers of High Tensile Steel Wire
Hose I.D. (size)	-4	Maximum Working Pressure (psi)	12,500
