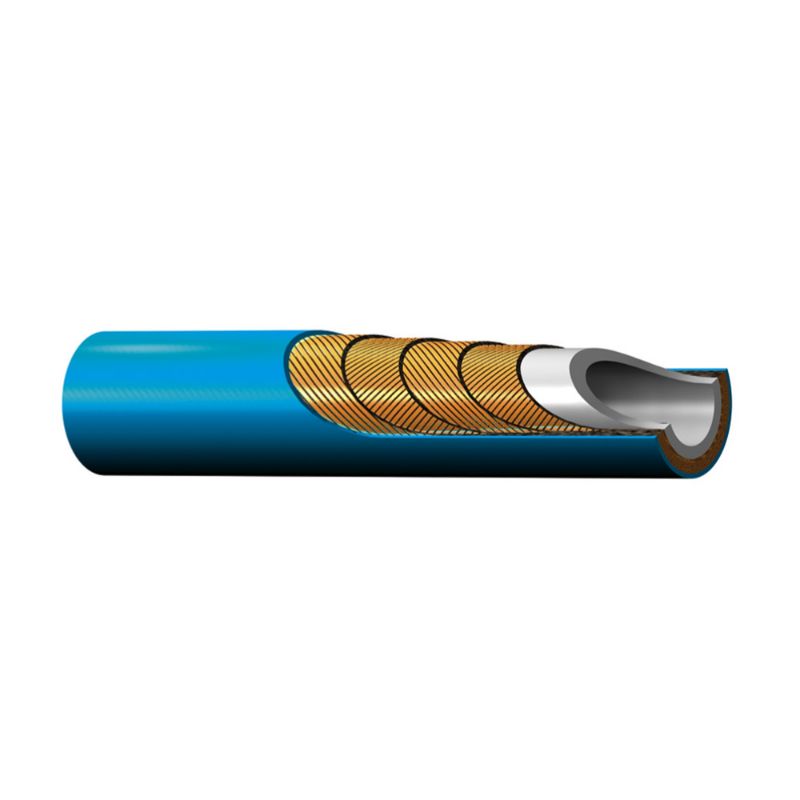

Parker 2440D-04V32-TC - Water Jetting Hose - 2440D/2448D

Parker Tough Cover Ultra High Pressure Water Jetting Hose handles pressures up to 43,000 psi (3000 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2440D-04V32-TC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Minimum Operating Temperature	-10 °C
Inside Diameter	1/4 inch	Media	Chemicals
Application	Construction Equipment	Cover Material	Polyamide (PA)
Design Factor	2.5:1	Weight	0.33 kg/m
Specifications Met	DIN 1829-2	Maximum Operating Temperature	158 °F
Hose Inner Tube Material	Polyoxymethylene (POM)	Compatible Fitting	LX Series
Maximum Operating Pressure	1640 bar	Outside Diameter	12.5 mm
Minimum Bend Radius	155 mm	Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire
Hose I.D. (inch)	1/4	Maximum Working Pressure (psi)	23,780
