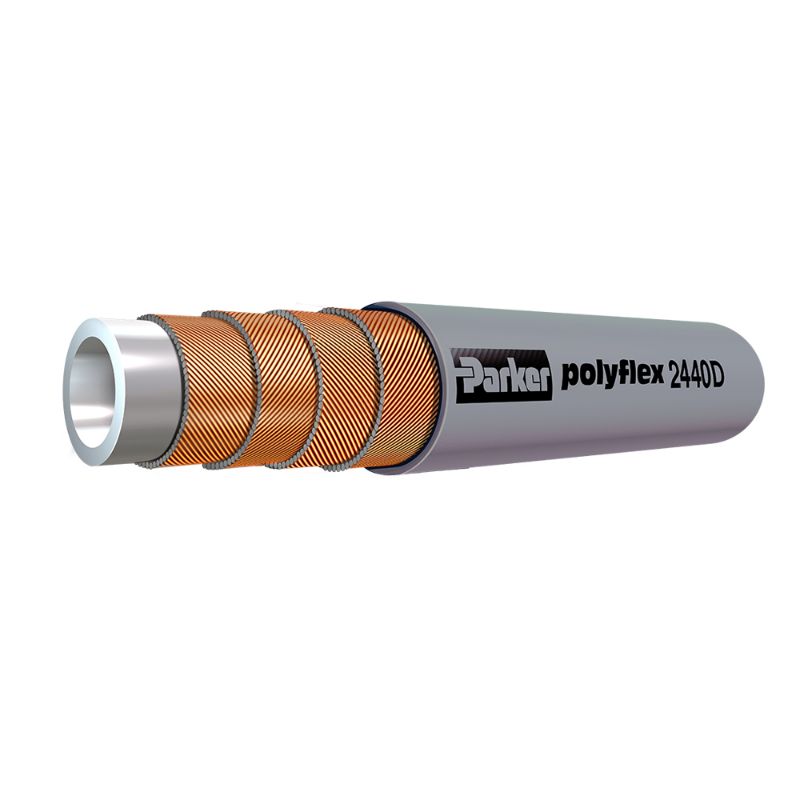

Parker 2440D-025V37-TC - Water Jetting Hose - 2440D/2448D

Parker Tough Cover Ultra High Pressure Water Jetting Hose handles pressures up to 43,000 psi (3000 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2440D-025V37-TC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Media	Chemicals
Weight	0.14	Application	Construction Equipment
Minimum Bend Radius	4	Cover Material	Polyamide (PA)
Design Factor	2.5:1	Specifications Met	DIN 1829-2
Maximum Operating Temperature	158	Minimum Operating Temperature	14
Hose Inner Tube Material	Polyoxymethylene (POM)	Compatible Fitting	LX Series
Maximum Operating Pressure	31900	Inside Diameter	5/32
Outside Diameter	0.410	Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire
Hose I.D. (inch)	5/32	Notes	See PFX25-025
Maximum Working Pressure (psi)	31,900
