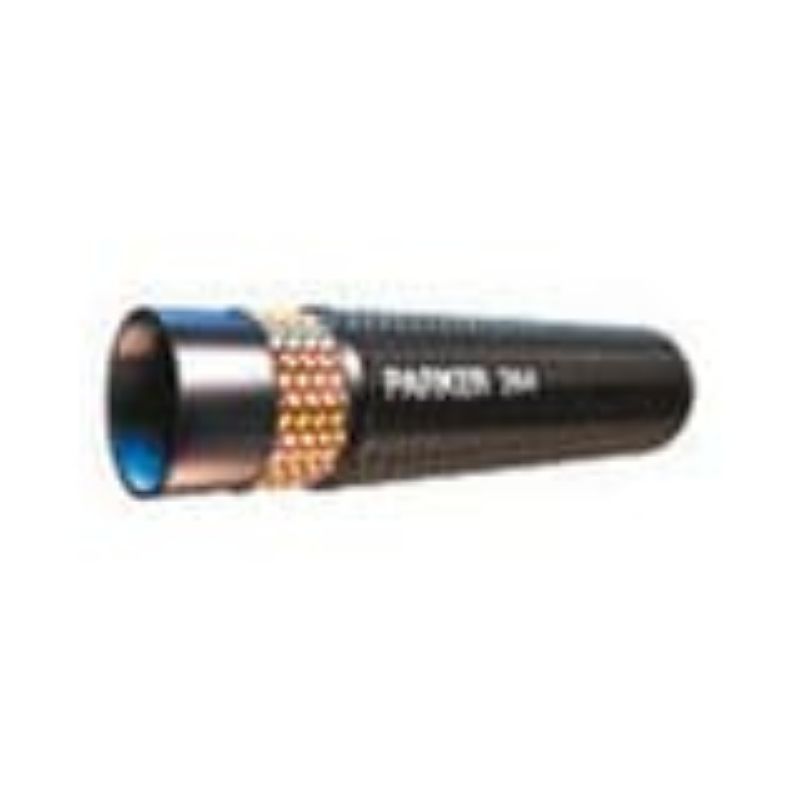

Parker 244-16 - Refrigerant/Air Conditioning Hose 350-500 PSI – 244 Hose

Parker's 244 hose is a refrigerant hose that has a pressure range of 350-500 PSI, designed for the rigorous requirements of bus and transit applications.

AFP Availability:	Quote Required
Partner Available:	89 In Stock

Brand Parker

Part No. 244-16

$35.61/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Nominal Hose Inside Diameter	22 mm
Application	Refrigerant 134a	Minimum Operating Temperature	-30 °C
Weight	0.76 kg/m	Maximum Operating Pressure	500 psi
Minimum Bend Radius	190 mm	Specifications Met	SAE J2064, Type B Class I
Hose Reinforcement Material	1 Braid of Steel Wire	Division	Hose Products Division
Outside Diameter	31 mm	Inside Diameter	7/8 inch
Hose Inner Tube Material	Butyl Rubber	Media	Coolants
Compatible Fitting	26 Series	Maximum Operating Temperature	125 °C
Hose Cover Type	Standard Cover	Hose I.D. (size)	-16
