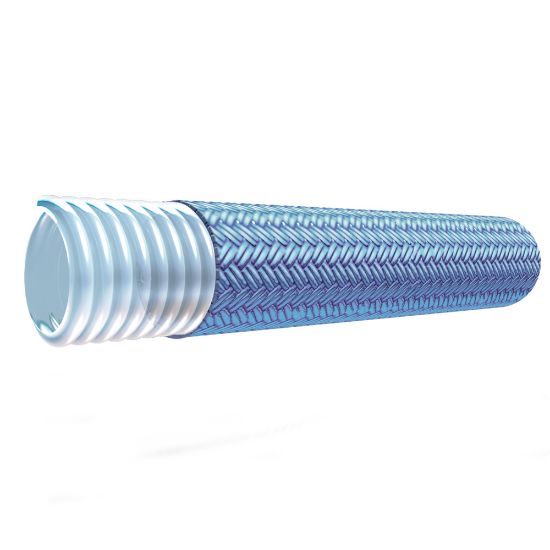

Parker 24-PCW - Convoluted PTFE Hose with Polypropylene Braid - PCW/PCB

Polypropylene braided convoluted hoses are seamless, low profile, environmentally safe, and are 20% lighter than traditional stainless steel braided hoses for increased flexibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24-PCW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Product Type	PTFE Hose
Application	Chemical Transfer	Cover Material	n/a
Compatible Fitting	PAGE Series	Specifications Met	FDA (Core Tube)
Vacuum Pressure Rating	711.2 mm-Hg	Hose Inner Tube Material	Natural
Design Factor	4:1	Product Style	Convoluted
Media	Water	Hose Reinforcement Material	Braid of Polypropylene
Maximum Operating Temperature	212 °F	Minimum Operating Temperature	0 °F
Inside Diameter	1-1/2 inch	Weight	0.63 kg/m
Size	-24	Maximum Operating Pressure	2.4 MPa
Minimum Bend Radius	95 mm	Outside Diameter	2.120 inch
Hose Style	Natural, Polypropylene Braid	Hose I.D. (inch)	1-1/2
