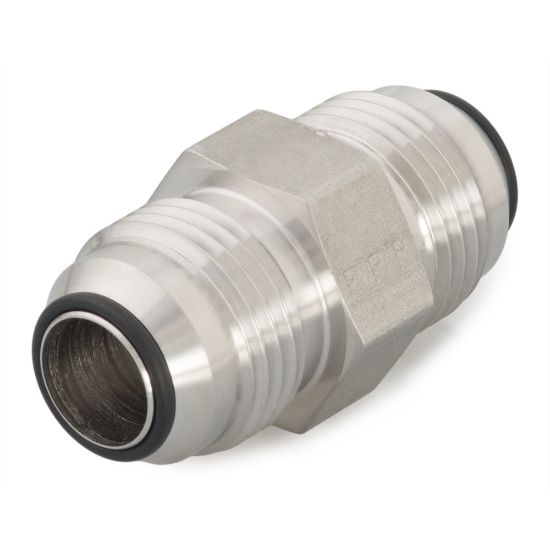

Parker 24 HTXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24 HTXO-SS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	5000 psi
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	na
Connection 3 Size	na	Connection Type	Soft Seal Stainless Steel 37° Flare
Shape	Straight	Connection 2 Thread Size (inch)	na
Connection 1 Style	Male 37° Flare with O-ring Seal on Nose	Connection 2 Style	Male 37° Flare with O-ring Seal on Nose
Connection 1 Tube O.D. (inch)	1 1/2	Connection 2 Tube O.D. (inch)	1 1/2
