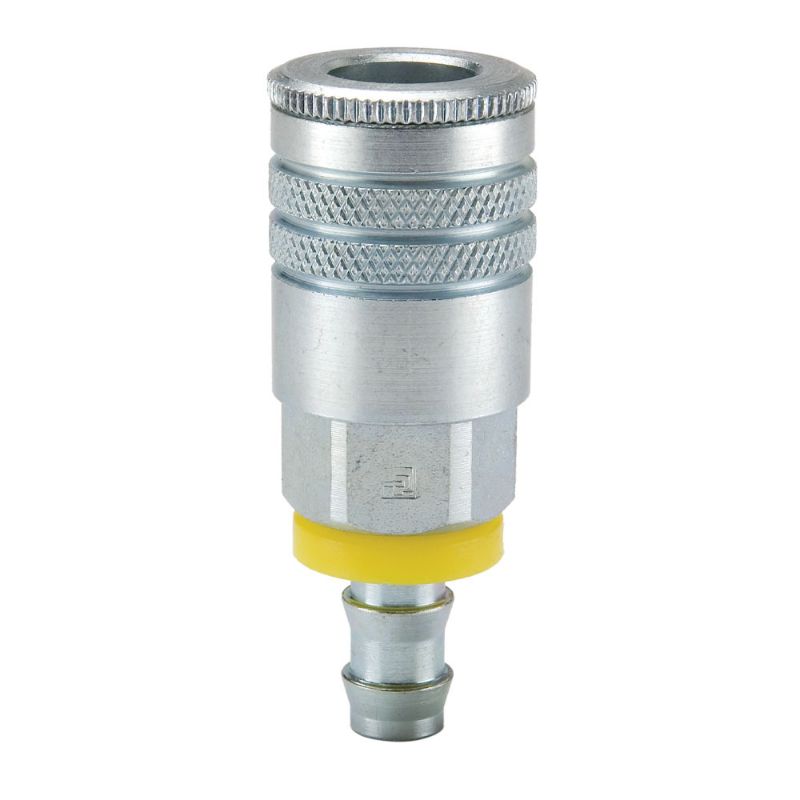

Parker 24-5BP - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Name: Parker 24-5BP - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series
SKU: 24-5BP
Price: 35.95 USD
Availability: InStock

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

32 In Stock

North Chesterfield, VA	13
Jacksonville, FL	5
Summerville, SC	5
Mooresville, NC	4
Richmond, VA	2 (Pickup only)
Johnson City, TN	2 (Pickup only)
West Knoxville, TN	1

Partner Available:

327 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 24-5BP

$35.95/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Lock Type	Locking balls
Body Material	Steel	Maximum Operating Temperature	250 °F
Media	Low pressure fluids and compressed air	Plating Type	Zinc with clear trivalent chromate
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Application	Air
Minimum Operating Temperature	-40 °F	Coupling Half	Coupler
Maximum Operating Pressure	300 psi	Seal Material	Nitrile
Sleeve Type	Manual	Division	Quick Coupling Division
Dimensional Weight	0.07997601918465227 lb	Valve Type	Tubular
Body Material	Steel	Body Size (inch)	3/8
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb
Thread Style	na	Connection Hose I.D. (inch)	3/8

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
