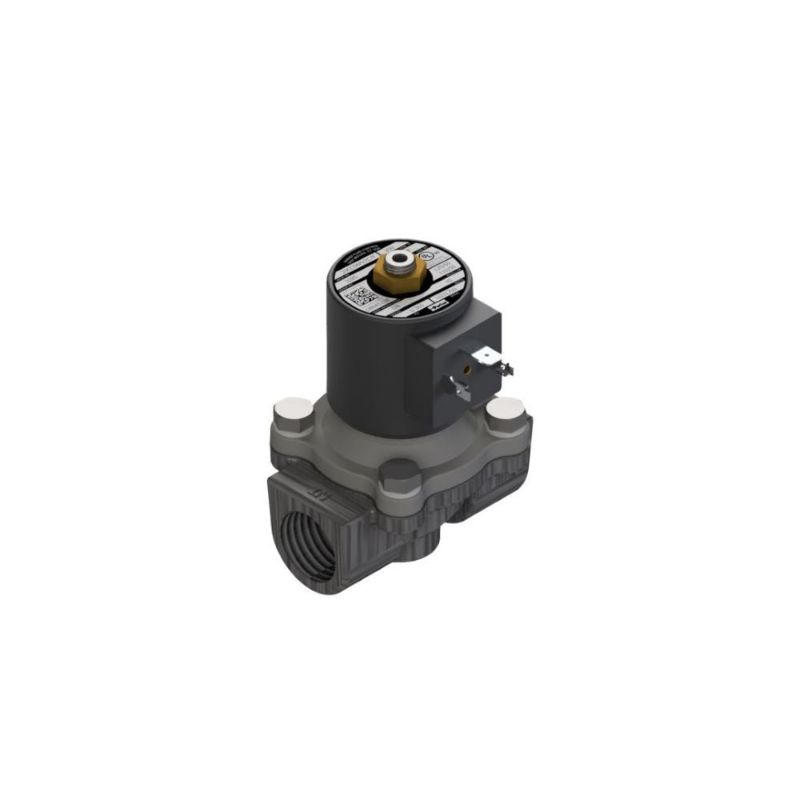

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 23RC12VV7D - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 23RC12VV7D

$724.76

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Minimum Pressure Differential	0 psi	Seal Material	FKM
Actuation Type	Direct Lift	Orifice Size	3/4 inch
Configuration	All Ports in Body	Maximum Ambient Temperature	125 °F
Function	2-Way	Specifications Met	-
Maximum Fluid Temperature	185 °F	Exhaust Flow Coefficient	n/a
Port Size	NPT 3/4 inch	Installation	IOM7222
Input Voltage	Pressure Vessel Only (DC Voltage)	Power Consumption	22 W
Main Flow Coefficient	5 Cv	Coil Specifications Met	Requires DC Voltage G7 Series Coil Kit
Body Material	Stainless Steel 316L	Maximum Pressure Differential	250 psig
Preventive Maintenance Kit	7R035	Seal Material	FKM
Configuration	Normally Closed	Function	2-Way
Minimum Pressure Differential (psi)	0	Voltage	Pressure Vessel Only (DC Voltage)
Coil Type	Requires DC Voltage G7 Series Coil Kit	Port Size (inch)	3/4 NPT
Orifice Size (inch)	3/4	Body Material	316L Stainless Steel
Maximum Operating Pressure Differential (psig)	250
