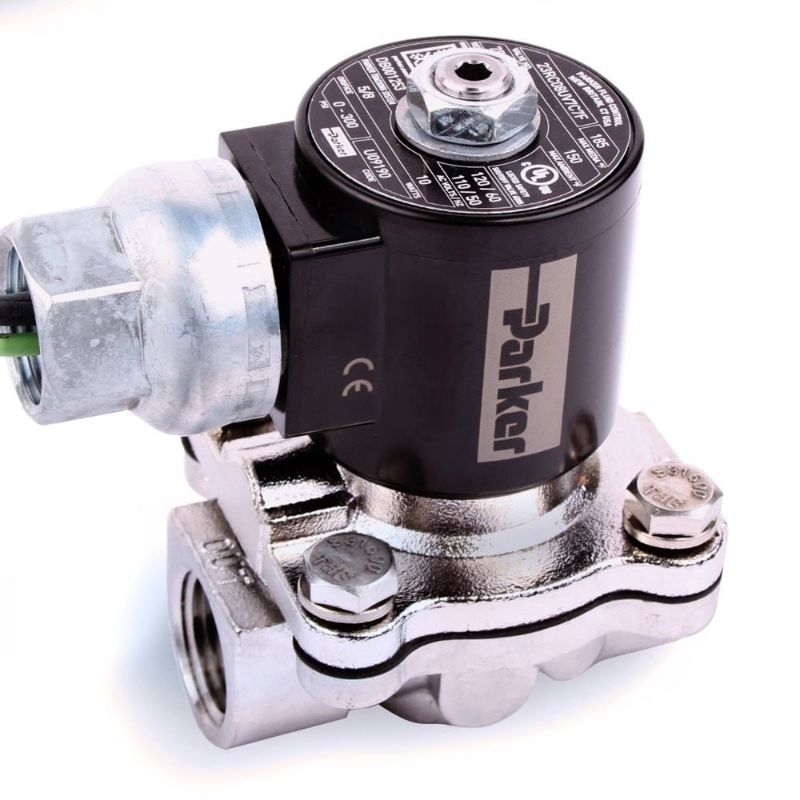

Parker 23RC08UV7C8B - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 23RC08UV7C8B

$748.26

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Input Voltage	24.0 VDC	Minimum Pressure Differential	0 psi
Seal Material	FKM	Actuation Type	Direct Lift
Orifice Size	5/8 inch	Configuration	All Ports in Body
Specifications Met	CULus Safety Shutoff	Maximum Ambient Temperature	125 °F
Function	2-Way	Maximum Fluid Temperature	185 °F
Coil Specifications Met	IP69	Exhaust Flow Coefficient	n/a
Port Size	NPT 1/2 inch	Installation	IOM7222
Power Consumption	22 W	Main Flow Coefficient	4 Cv
Body Material	Stainless Steel 316L	Maximum Pressure Differential	250 psig
Preventive Maintenance Kit	7R034	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Seal Material	FKM	Configuration	Normally Closed
Voltage	24 VDC	Function	2-Way
Minimum Pressure Differential (psi)	0	Port Size (inch)	1/2 NPT
Orifice Size (inch)	5/8	Body Material	316L Stainless Steel
Maximum Operating Pressure Differential (psig)	250
