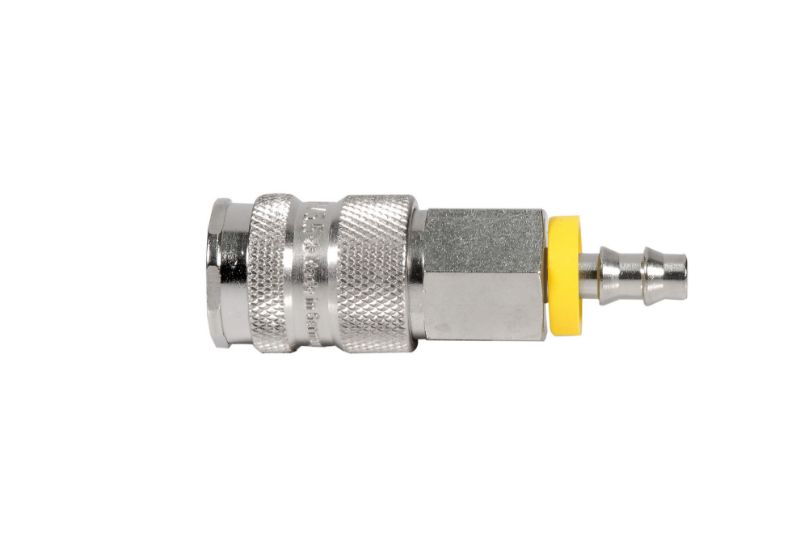

Parker 23KATP10MPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 23KATP10MPN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-4 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	212 °F
Maximum Operating Pressure	300 psi	Application	Air
Lock Type	Locking balls	Media	Low Pressure Fluids
Sleeve Type	Push to Connect	Specifications Met	ISO 6150B
Division	Quick Coupling Division	Valve Type	Valved
Plating Type	Nickel Plated	Fitting Connection Type	Push-Lok Hose Barb
Body Material	Brass, Nickel-plated	Connection Type	Push-Lok hose barb
Coupling Half	Coupler	Connection Thread Size	n/a
Body Material	Brass, Nickel-plated	Hose I.D.	3/8"
Body Size	1/4"	Thread Style	n/a
