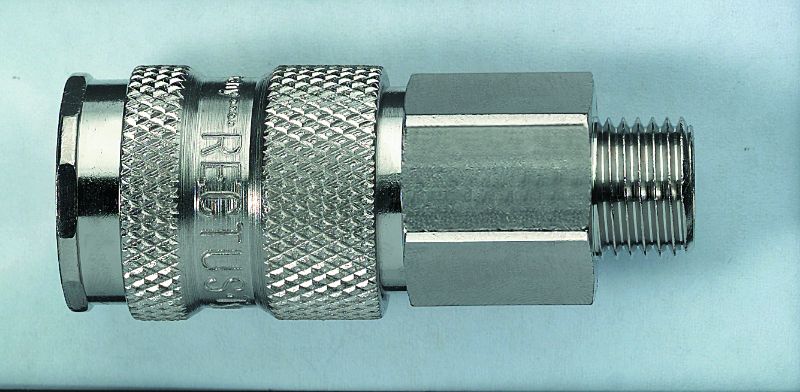

Parker 23KAAN13MPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	81 In Stock

Brand Parker

Part No. 23KAAN13MPN

$31.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Sleeve Type	Push to Connect
Maximum Operating Temperature	212 °F	Valve Type	Valved
Division	Quick Coupling Division	Minimum Operating Temperature	-4 °F
Body Material	Brass, Nickel-plated	Division	Quick Coupling Division
Lock Type	Locking Balls	Media	Low Pressure Fluids
Seal Material	Nitrile	Specifications Met	ISO 6150B
Application	High Flow	Plating Type	Nickel Plated
Fitting Connection Type	Male Threads	Maximum Operating Pressure	300 psi
Connection Thread Size	1/4"-18	Thread Style	Male
Connection Type	NPTF	Hose I.D.	n/a
Coupling Half	Coupler	Body Material	Brass, Nickel-plated
Body Size	1/4"

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
