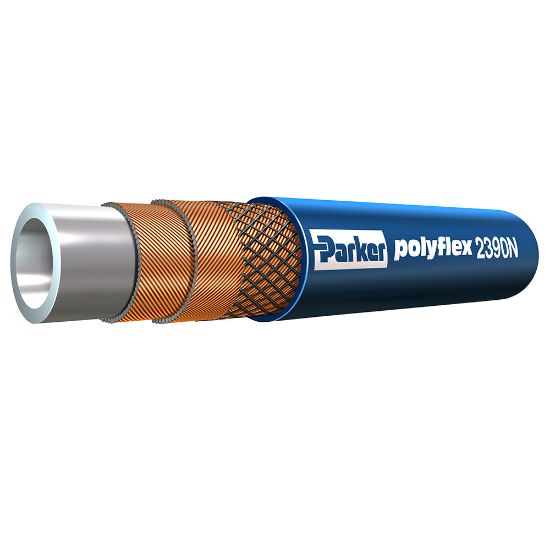

Parker 2390N-16V12 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2390N-16V12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Design Factor	4:1	Maximum Operating Temperature	212 °F
Cover Material	Polyurethane	Application	Subsea BOP
Inside Diameter	25.4 mm	Size	-16
Media	Petroleum Hydraulic Fluids	Hose Inner Tube Material	Methanol Washed
Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire	Weight	1.17 kg/m
Outside Diameter	1.380 inch	Compatible Fitting	9X Series
Specifications Met	ISO 13628-5	Minimum Bend Radius	11 inch
Maximum Operating Pressure	4060 psi	Hose I.D. (size)	-16
Cover Color	Blue	Maximum Operating Pressure	Obsolete
